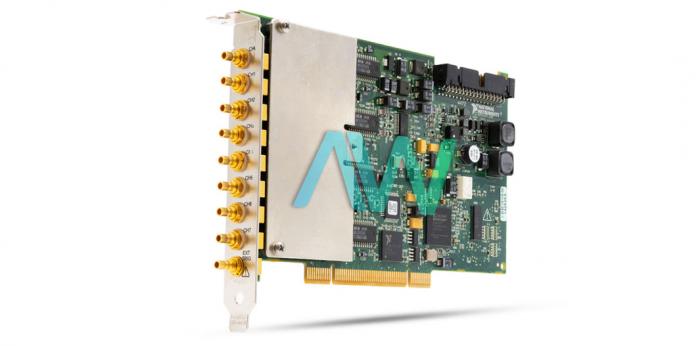

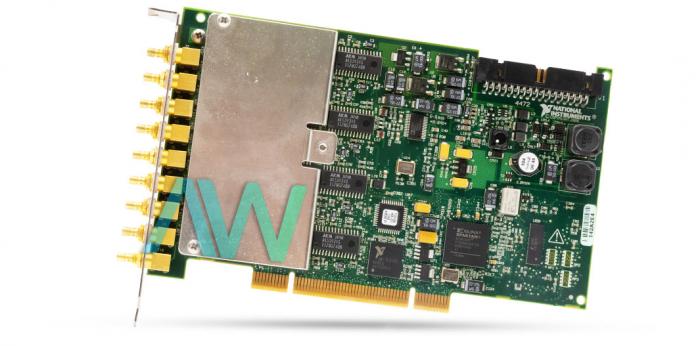

National Instruments PCI-4472 Sound and Vibration Device

The National Instruments PCI‑4472 (Part Number: 778348-01, 187611F-02 ) device offers both simple and computerized activating for signal obtaining. This 8-Channel Sound and Vibration Device can be utilized for several applications, including: pass-by noise, noise and vibration diagnostics, structural vibration, audio test and measurement, telecommunications testing, sound power, and machine condition monitoring. This device has a 5 VTTL/CMOS-compatible outer computerized trigger that is enacted by a decision of incrementing or minimizing edge. Activating is necessary in applications that procure transient signals. The NI PCI-4472 Sound and Vibration Device can be synchronized with several NI-447x devices for high-channel-count applications. When this device is utilized with the Sound and Vibration Toolkit or other software analysis tools, the PCI-4472 can attain many types of precise time and frequency measurements for the user’s application.

The National Instruments PCI-4472 Sound and Vibration Device has two trigger modes for obtaining signals: pretrigger and posttrigger mode. Pretrigger mode digitizes signals prior to and after a trigger condition takes place. However, posttrigger mode digitizes signals after a trigger condition takes place. An installed exactness voltage reference guarantees that the gain and balance stay steady and precise. The NI PCI 4472 utilizes NI estimation administrations programming, in view of the equipment and OS interface from the NI-DAQmx driver. By utilizing NI-DAQmx function calls, the user can fabricate computerized test frameworks or coordinate a NI PCI‑4472 with other types of equipment, including measured instruments and multifunction information procurement items. NI estimation administrations programming also incorporates DAQ Assistant, an intelligent guide that guides the user through arranging, analysis, and software design estimation assignments and creates the vital code consequently for National Instruments applications.

PCI-4472 Mature Status has been announced by National Instruments, but the device will still be available for purchase and repairs by Apex Waves.
