National Instruments PCI-4472B Sound and Vibration Device

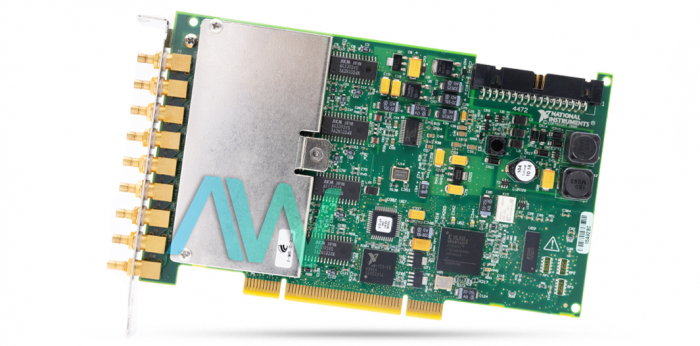

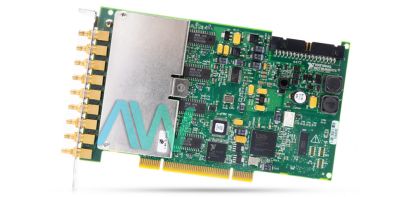

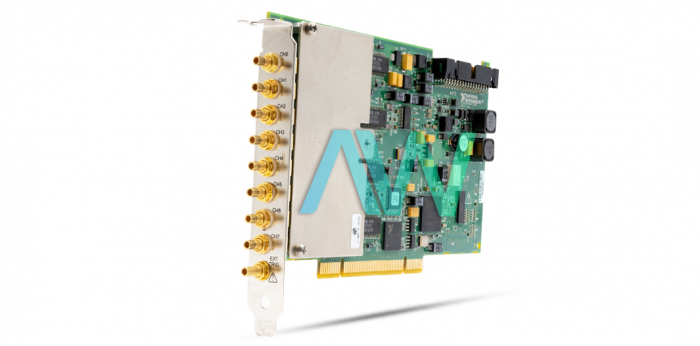

The PCI‑4472B (Part numbers: 779682-01 and 779683-01) is a Sound and Vibration Device from National Instruments that is equipped with 8 simultaneously sampled analog input channels. With 24 bits of ADC resolution, the device offers dynamic signal capture for a wide variety of sound and vibration applications. The PCI-4472B features software-configurable AC/DC coupling, and IEPE conditioning, guaranteeing accurate measurements with extremely high dynamic range transducers. SMB male connectors provide versatile connectivity options for both Analog I/O and Digital Trigger features.

The difference between the two part numbers of the PCI‑4472B is that part number 779682-01 is the standard version of the device while the 779683-01 is the sound and vibration measurement suite version. Some of the most common applications of the PCI‑4472B include monitoring machine conditions, diagnosing noise and vibration, and testing / measuring audio. An RTSI bus allows up to 5 devices to be synchronized across a ribbon cable.

The bus interface of the PCI‑4472B sound and vibration device boasts a 3.3 V or 5 V signal environment, which impacts the power requirement of the device. For a rail of 3.3 VDC, the required power is 0 mA. On the other hand, a rail of 5 VDC draws in a maximum of 2,600 mA.

Designed for use in a wide range of environmental conditions, the PCI‑4472B should be operated within temperatures ranging from 0 to 50 °C with a noncondensing humidity ranging from 10% to 90%. When in storage, the sound and vibration device can handle an even wider temperature range of –20 to 70 °C with a noncondensing relative humidity range of 5% to 95%. Physically, the PCI‑4472B device measures dimensions of 17.5 × 10.7 cm (6.9 × 4.2 in.) when not including the connectors. In total, the sound and vibration device weighs approximately 198 g (7 oz).

PCI-4472B Mature Status has been announced by National Instruments, but it will still be available for purchase and repairs by Apex Waves.
