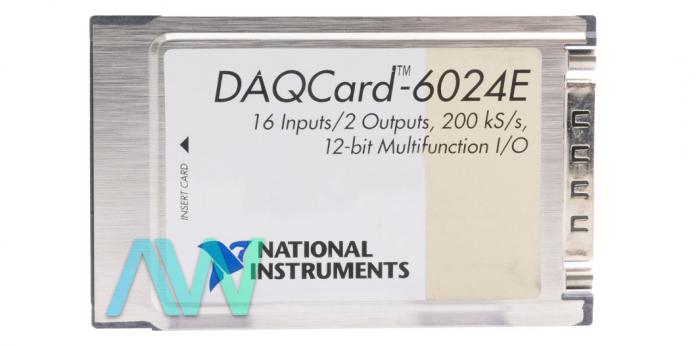

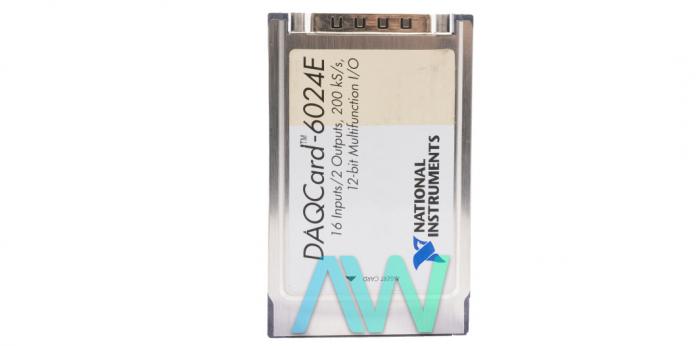

National Instruments DAQCard-6024E Multifunction Device

The DAQCard-6024E (Part Number: 778269-01) is a PCMCIA Multifunction I/O Device with 16 analog input channels, 2 analog output channels, and 8 DIO. This device is developed by National Instruments. The NI DAQCard-6024E is not just compatible with TTL, but also with CMOS. This Multifunction I/O Device has a configuration memory size of 512 words.

This PCMCIA device can be used for external clocking and digital triggering with an absolute accuracy of 8.127 mV at full scale reading. This can help when simplification in configuration and measurement is required by using the NI-DAQ 7 driver. The DAQCard-6024E also has the capability to deliver E Series performance to handheld instruments as well as laptops. This Multifunction I/O Device provides a maximum 200 kS/s sampling rate, provided with 12-bit analog input resolution on the analog input channels. This device also offers 12-bit analog output resolution on the 2 voltage output channels.

For transferring data, the DAQCard-6024E uses a 68-position VHDCI female connector compatible with both TTL and CMOS. This device also has an onboard self-calibration feature, which helps ensure measurement preciseness. This form of calibration is fully software controlled. To use the DAQCard-6024E with a PC, it requires NI-DAQmx version 6.9 or higher. This driver has a wide range of library functions which anybody can use from the programming environment applications. The DAQCard-6024E is compatible with different operating systems, such as Windows 2000/XP/NT. The recommended compatible types of application software are C/C++, C#, Visual Basic, Measurement Studio, LabVIEW, LabWindows/CVI, and VI logger.
