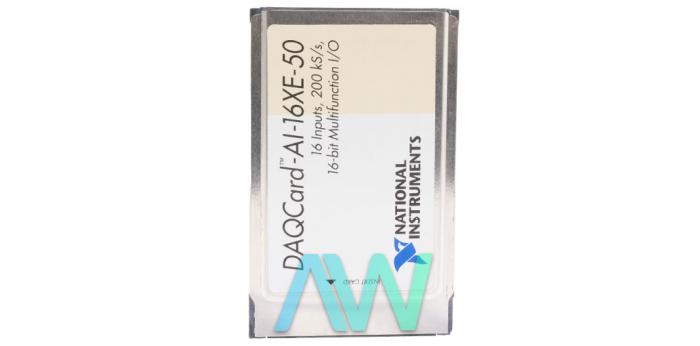

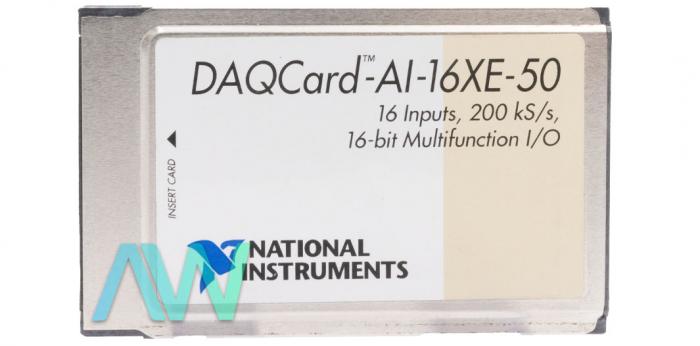

National Instruments DAQCard-AI-16XE-50 Multifunction I/O Card

The DAQCard-AI-16XE-50 (Part Number: 777231-01) is a high-performance Multifunction I/O Card manufactured by National Instruments. The NI DAQCard-AI-16XE-50 belongs to the NI-6012E DAQCard E Series. The DAQCard-AI-16XE-50 has a unipolar input range of 10 V (0 to 10 V) and a bipolar input range of 20 V (±10 V). The input channels of the DAQCard-AI-16XE-50 can be programmed independently for polarity and voltage range. This feature allows the user to have unique settings on each individual channel.

This Multifunction I/O Card has gains of 1, 2, 10, and 100 and is suited for a wide variety of signal levels. This feature enables users to take advantage of the ADC full resolution. The gain of the DAQCard-AI-16XE-50 can be programmed through software, which gives the user more flexibility. The input signal ranges can be synchronized with the ADC range. The DAQCard-AI-16XE-50 is equipped with a sampling rate up to 200 kS/s and a variety of input signal rages from (±0.1 V - ±10 V) for bipolar and unipolar ranges.

The NI DAQCard-AI-16XE-50 features voltage protection for both the powered on as well as powered off condition. This Multifunction I/O Card comes with excellent transfer characteristics with guaranteed 16 bits resolution and multiple bandwidth user specific options (39 kHz – 69 kHz) to ensure reliable communication.

This Multifunction I/O Card can be used with several accessories. The recommended configuration by National Instruments involves using this card with the SCB-68 (Part Number: 776844-01) accessory and the PSHR68-68 (Part Number: 777293-01) cable.
