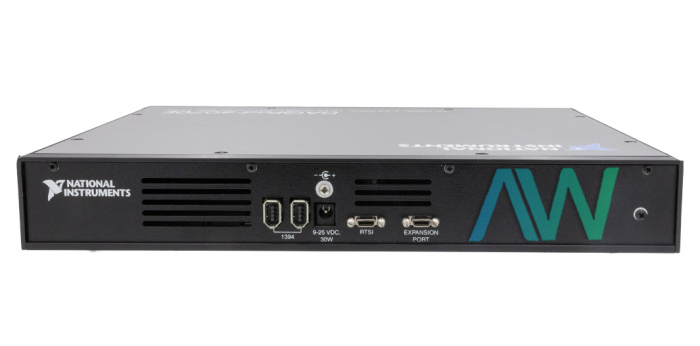

National Instruments DAQPad-6070E Multifunction I/O Device

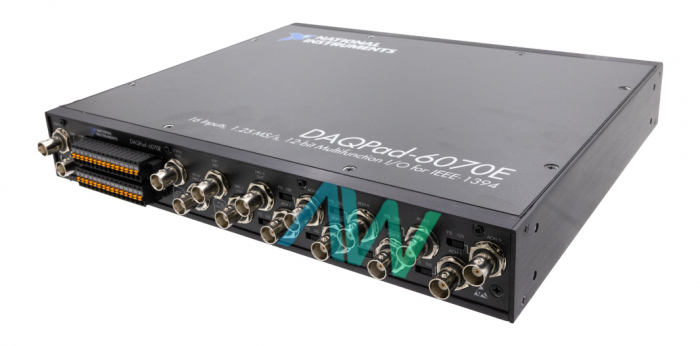

The DAQPad-6070E is an efficient Multifunction I/O Device. The DAQPad-6070E has been designed and developed by National Instruments. The DAQPad-6070E is specifically designed for FireWire. The DAQPad-6070E is available with two different types of connectors. One comes with mass termination, whereas the other version has BNC Termination. The two versions of the DAQPad-6070E are available with different voltage levels corresponding to compatibility in different countries. The available part numbers of the mass termination version are 777867-01 (US 120 VAC), 777867-04 (Universal Euro 240 VAC), and 777867-06 (UK 240 VAC). The BNC version of the DAQPad-6070E comes with part numbers 777803-01 (US 120 VAC), 777803-04 (Universal Euro 240 VAC), and 777803-06 (UK 240 VAC).

The DAQPad-6070E is a 12-bit device, which features 16 analog input channels. These input channels are programmable and can be used as single-ended or differential channels. The NI DAQPad-6070E can perform sampling at a maximum rate of 1.25 MS/s. The number of output channels on this Multifunction I/O Device is 2. In addition, the NI DAQPad-6070E is equipped with 8 digital I/O channels. Other special features include built-in counters/timers and analog and digital triggers. The DAQPad-6070E accessories include an AC adapter kit and a 4 m FireWire cable. The AC adapter is universal so it can be used with multiple power cables.

This Multifunction I/O Device is a suitable choice for both desktop and portable applications. The DAQPad-6070E is effectively useful in those applications where limited space is available. The major applications of the NI DAQPad-6070E include in-vehicle automotive, data logging, and aircraft testing.
