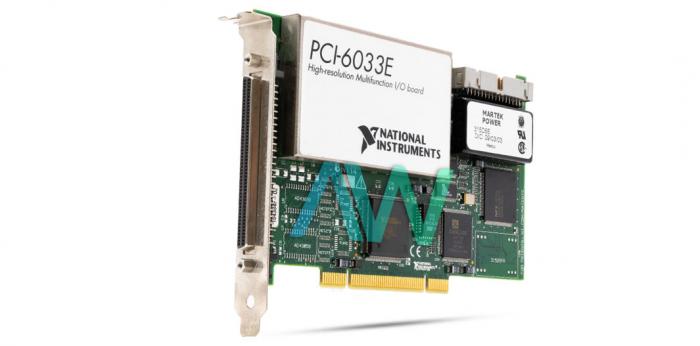

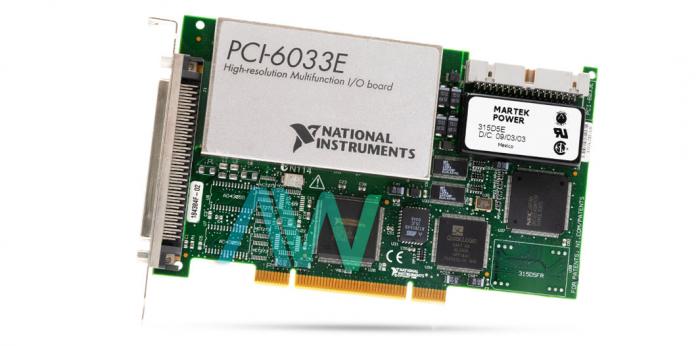

National Instruments PCI-6033E Multifunction DAQ

The NI PCI-6033E (Part number: 777516-01) Multifunction DAQ has 64 single-ended and 32 differential analog input channels, 500 kS per second maximum sample rate, eight digital I/O, two 24-bit counters/timers, and 0 analog output channels. This E Series Multifunction DAQ has DC input coupling and overvoltage protection. When overvoltage protection is powered on, the value is ±25 V. On the other hand, when overvoltage protection is powered off, the value is ±15 V. The PCI-6033E Multifunction DAQ has a 100-pin female 0.05 D-type I/O connector.

The user can program extremity and range settings on a by channel premise, so they can design each information channel. This model builds general adaptability by coordinating the input signal extents to those that the ADC can oblige. There are increases of 0.5, 1, 2, 5, 10, 20, 50, and 100 and are suited for a wide assortment of flag levels. With the best possible gain setting, users can utilize the full determination of the ADC to gauge the information signal. The input extremity and range selected relies upon the normal scope of the approaching signal. A huge information range can oblige an expansive signal variety yet lessens the voltage determination. Picking a smaller information range enhances the voltage determination; however, it may bring about the information signal leaving range. For the best outcomes, the user should coordinate the information range as nearly as conceivable to the normal scope of the information signal.

The PCI 6033E operates using the NI-DAQmx driver software which is compatible with software packages or application development environments (ADEs) such as LabVIEW, LabWindows/CVI, and Microsoft Visual Studio. The device hardware can be configured using the Measurement & Automation Explorer (MAX) tool.

The National Instruments PCI 6033E comes with a Dither feature that cannot be turned off. When the user utilizes dither, they include roughly 0.5 LSB rms of white Gaussian noise to the signal to be changed over by the ADC. This expansion is helpful for applications, including averaging to expand the determination of the PCI-6033 E Series board, as in alignment or examination. The device weighs 6.2 oz., and measures 6.9 x 4.2 in. in dimensions.
