National Instruments PXI-6070E Multifunction DAQ

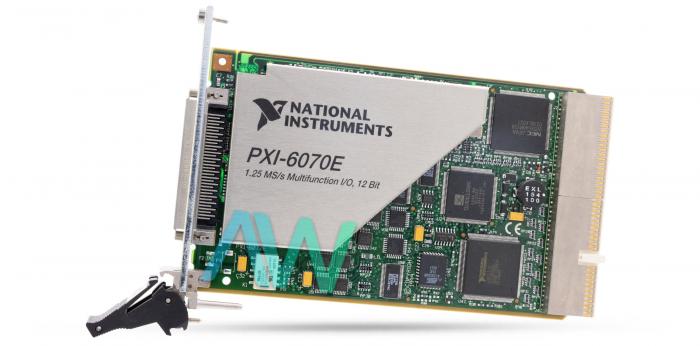

The NI PXI-6070E PXI Multifunction Data Acquisition Device (Part Number: 777060-01) utilizes E Series innovation to deliver elite and dependable data acquisition abilities to meet an extensive variety of necessities. The user can achieve up to 1.25 MS/s, 12-bit execution over different bus frameworks, and can choose from either 16 or 64 single-ended analog inputs. Depending on the hard drive type, the PXI-6070E can stream to a disk at rates up to 1.25 MS/s. This E Series gadget highlights both analog and digital triggering abilities, along with two 12-bit analog outputs, two 24-bit, 20 MHz counter/timers, and eight computerized I/O lines. It is equipped with a 68-pin male 0.050 D-type I/O connector.

The NI PXI-6070E incorporates the DAQPad PXI-6070E for IEEE 1394, which is accessible in two distinct arrangements. The two designs highlight 250 V of functional isolation from the PC and a low-profile package that fits under a laptop. The mass termination version highlights a 68-pin shielded connector to associate signals either from the SCC Series modular signal conditioning items or from a CA-1000 custom-network enclosure. The BNC termination version highlights shielded BNC connectors for eight differential-terminated analog inputs, two analog outputs, and five assistant lines. The user can gain access to different signals through built-in screw terminal connections. It is perfect for applications where portability and quick availability are required, such as in-vehicle car testing or research center estimations.

The PXI-6070E is run using the NIDAQmx driver software which is compatible with software packages or application development environments (ADEs) such as LabVIEW, LabWindows/CVI, or Measurement Studio. It has a recommended warm-up time of 15 minutes, and should be calibrated at least once a year.

The NI device weighs 7.1 oz, measures 6.3 x 3.9 in. in physical dimensions. It has a recommended operating temperature range of 0 to 55 °C, a storage temperature range of –20 to 70 °C, and a non-condensing relative humidity range of 10 to 90%. The multifunction DAQ is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 61010-1, among others.

PXI-6070E End of Life Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
