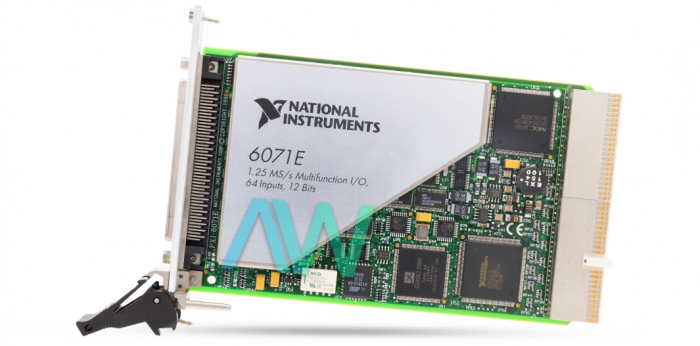

National Instruments PXI-6071E Multifunction DAQ

The NI PXI-6071E is a PXI Multifunction DAQ (Part Number: 777676-01), which has an instrument class estimation and amplifier that ensures settlement times in all profits.

This model offers the following features:
-       64 single-ended or 32 differential analog input channels with an input resolution of 12 bits, and a maximum sample rate of 1.25 MS per second.
-       2 analog output channels with a resolution of 12 bits.
-       8 digital I/O channels with a 5 V/TTL compatibility.
-       FIFO buffer size of 512 S, and 3 DMA channels.
-       PFI Lines: These are eight programmable function input (PFI) lines that can be utilized for software-controlled routing of interboard and intraboard digital and timing signals.
-       RTSI or PXI Trigger Bus: This feature is used to share timing and control motions amongst gadgets and synchronize operations.
-       RSE Mode: Along with differential and non-referenced single-ended modes, NI full-highlighted E Series gadgets provide referenced single-finished (RSE) mode to be utilized with floating signal sources in applications with more than eight channels.
-       Onboard Temperature Sensor: This is included for checking the operation temperature of the gadget to guarantee that it is working inside the predetermined range.
-       Elite Driver Engine: Software-timed single-point input (typically utilized as a part of control loops) with NI-DAQ, the module accomplishes rates as high as 50 kHz. NI-DAQ likewise conveys the greatest I/O framework throughput with a multithreaded driver.
-       Scaled Channels: The user can effortlessly scale voltage information into the best possible designed units by utilizing the NI-DAQ Measurement Ready virtual channels and picking from a variety of basic sensors and signals or making a unique, customized scale.
-       A 100-pin female 0.050 D-type connector.
-       Automatic Code Generation: DAQ Assistant is an intelligent guide that aids the user with arranging, assessing, and programming estimation tasks, and producing the required code for use with LabVIEW, LabWindows/CVI, or Measurement Studio.

The device weighs 4.1 oz., and measures 6.3 x 3.9 in. in physical dimensions.

PXI-6071E End of Life Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
