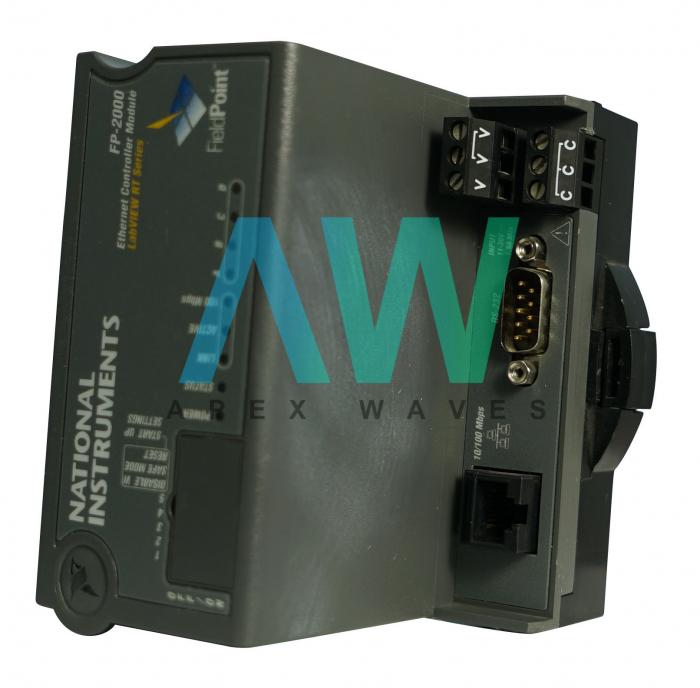

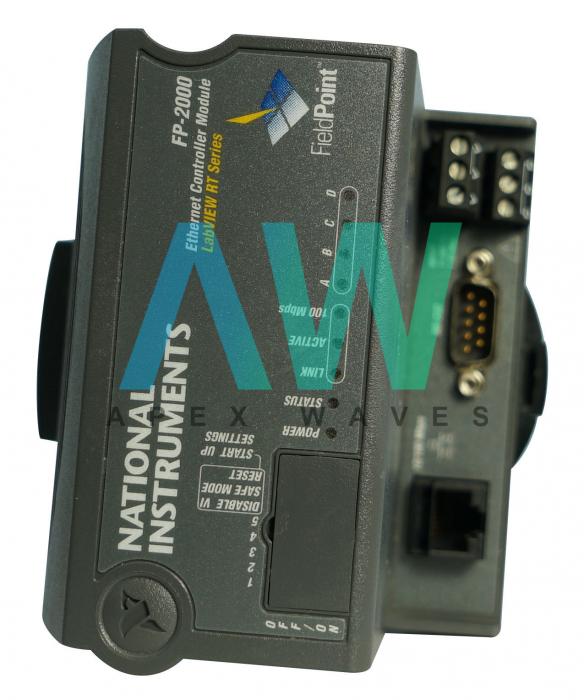

National Instruments FP-2000 LabVIEW Real-Time Controller Interface

The FP-2000 (Part Number: 777792-20) includes a LabVIEW Real-Time function, which allows the user to perform computerized and simple control with FieldPoint. With LabVIEW Real-Time implanted and running on a FP-2000 controller, the user can perform basic computerized control with Boolean rationale, and further developed simple control, such as, PID and fluffy rationale. The PID Control Toolset for LabVIEW has drop-down squares for fundamental and propelled PID, feed forward, and fluffy control. The user can also utilize it for direct and nonlinear testing, displaying, and reenactment. When building up a control framework, the user can exploit LabVIEW to execute essential control or effortlessly consolidate propelled control methods, such as, unsettling influence decoupling, gain booking, and fluffy rationale control. For apprentice clients, ground-breaking instruments like Autotuning PID make life less demanding and more profitable. For inserted frameworks, the user can easily send their LabVIEW application on the ongoing FieldPoint equipment target. With remote boards, it is possible to utilize a Web program to associate with the front board UI for the LabVIEW application. A few Web program customers can at the same time see the front board, while a solitary program can both view and control the application. The FP-2000 LabVIEW Real-Time Controller Interface includes an installed Web server that handles up to 20 concurrent remote board associations. The FP-2000 Controller also offers static Web pages to show framework data and naturally run an FTP server to make it simple to refresh the inserted control program or to share logged information.

Utilizing an occasion driven correspondence convention, the FP-2000 transmits information over Ethernet just when information esteems change. This eliminates superfluous system activity, bringing about more effective correspondence. The information esteems can be comprised of individual I/O module channels or client characterized factors in the inserted LabVIEW program. The device is equipped with 1 Ethernet and 1 serial port, a DRAM memory of 16 MB, and a nonvolatile storage of 16 MB.

The NI device weighs 9.8 oz. It has a recommended operating temperature range of –25 to 55 °C, a storage temperature range of –40 to 85 °C, and a non-condensing humidity range of 10 to 90% RH.
