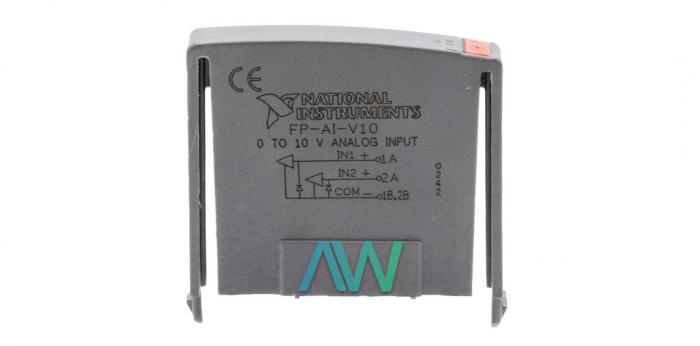

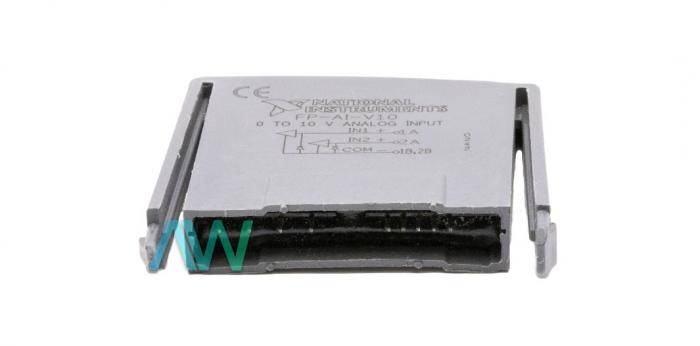

National Instruments FP-AI-V10 Analog Input Module
The FP-AI-V10 (Part Number: 778069-08) is a FieldPoint Analog Voltage Input Module made by National Instruments. The input range of this module is from 0 to 1 Volt. This module puts up different input resistances. The current input resistance and the voltage input resistance have different values. The value of input resistance of the current inputs is 133 Ohms. The value of input resistance of the voltage inputs is 2.2 M Ohms. The current inputs of this instrument are not programmable. However, the voltage inputs of this instrument are programmable. One value of bandwidth for the voltage inputs is 20.0 Hz. Another value of bandwidth for the voltage inputs is 2.0 KHz.
The current inputs of the FP-AI-V10 Analog Input Module have two values. One value of current input measurements is 20 Hz. The other value for current input measurements is 100 Hz. This module can be utilized with the FP-TB-10 terminal base. Users can mount up to six such modules on this base. The power requirement of this base is 200 mW.
The system of FP-AI-V10 can detect problems and interruptions. This precautionary system is an essential part of the model because it ensures the perfect functioning of the Analog Voltage Input Module. These features also provide input protection. One objective of this system is trouble-free installation. The other objective is the self-maintenance of the module. This is accomplished by scanning the module on a regular basis, as well as updating the readings.
| Model | FP-AI-V10 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778069-08 |
| Type | Analog Voltage Input Module |
| Channels | 2 |
| Resolution | 12-bit |
| Input Range | 0 to 10 V |
| Scan Time | 1.5 ms |
| Weight | 2.1 oz. |
| Warranty | 2-3 Year Warranty |
| FP-AI-V10 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments FP-AI-V10 Frequently Asked Questions
Question: What is the resolution of the FP-AI-V10 module?
Answer: The resolution of the FP-AI-V10 module is 2.44 mV.
Question: What are the settings of the programmable filters on the NI FP-AI-V10?
Answer: The settings of the programmable filters on the NI FP-AI-V10 are 20 Hz bandwidth or 2 kHz bandwidth.
Question: What is the temperature drift of the FP-AI-V10?
Answer: The temperature drift of the FP-AI-V10 is 250 µV + 75 ppm.
