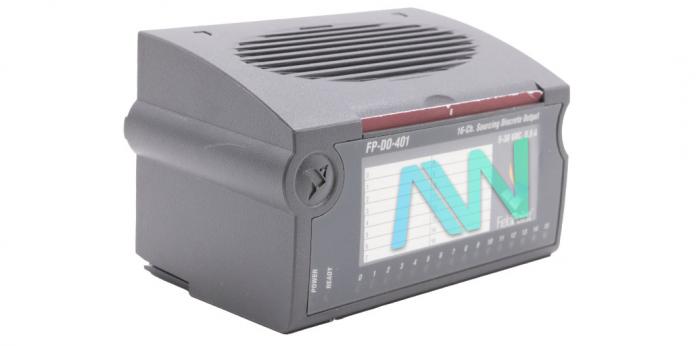

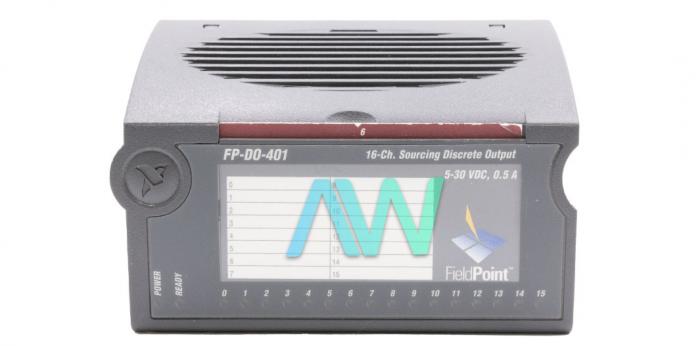

National Instruments FP-DO-401 Digital Output Module

The FP-DO-401 (Part Number: 777518-401) is a module that is ordinarily used to control marker lights, external exchanges, and CMOS and TTL contraptions. All the modules fuse locally accessible diagnostics to ensure bother free foundation and support. The FP-DO-401 modules give worked in module-to-module partition to guarantee the FieldPoint structure and controller or correspondence interface from high voltage levels. All the automated output modules use a mutual conviction plane for the propelled output channels. These modules are sourcing electronic output modules fit for offering up to 2 A for each channel. The device has 16 output channels with a voltage range of 5 to 30 VDC, an impedance of 0.3 Ω (at 10 to 30 V) and 2 Ω (at 5 to 10 V), and a power consumption of 730 mW from the network module.

The NI FP-DO-401 joins Ethernet capacities, so the user can without a doubt fitting knowledge and control inside a modern office or generation plant. Regardless, past the ability to proper estimation and control, FieldPoint is simple to use for Data Acquisition and offers a short range until the essential estimation. Both the game plan of the rigging and the Application Programming Interface (API) are clear and easy to utilize. Moreover, the equipment has worked in banner embellishment for fast and direct relationship of the sensors.

The FieldPoint Explorer handles hand through the dissemination of framework parameters, such as IP address and scan for the close-by subnet for FieldPoint Ethernet centers. The user can effortlessly plan I/O parameters as data ranges, start-up start states, clock states of security, or monitor hound while using normal window talked. The mechanical arrangement, programming designing, and the limits of LabVIEW control join to make FieldPoint an ideal stage for ceaseless introduced control.

The NI device weighs 5.2 oz. It has recommended operating and storage temperature ranges of –40 to 70 °C and –55 to 85 °C, a non-condensing relative humidity range of 10 to 90%, random and sinusoidal operating vibrations of 5 grms and 5 g respectively–all at a frequency range of 10 to 500 Hz. The FP-DO-401 is designed to comply with the following electrical safety standards: IEC 61010-1, EN-61010-1, UL 61010-1, CSA 61010-1.
