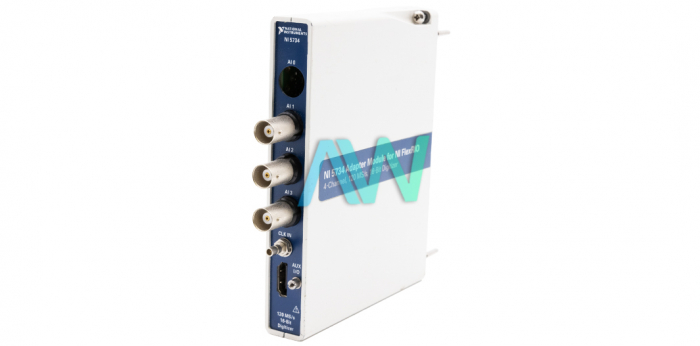

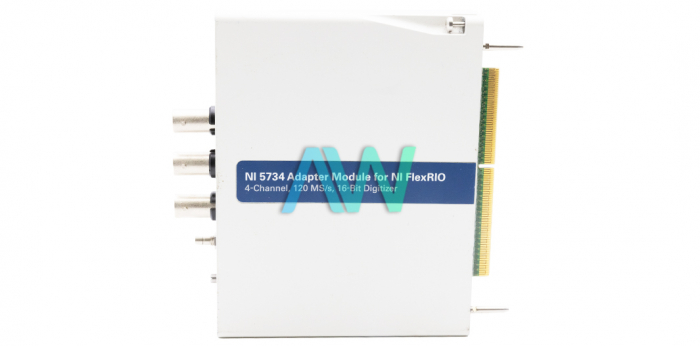

National Instruments NI-5734 Digitizer Adapter Module for FlexRIO

The NI‑5734 (Part number: 781659-04) is a Digitizer Adapter Module for FlexRIO by National Instruments. This module can perform digital measurements swiftly combined with a PXI FPGA Module for FlexRIO. The NI-5734 is easily configurable with a complete PXI System. The NI-5734 Digitizer Adapter Module fulfills the requirements of EMC standards for electrical equipment. These standards are for measurement, control, and laboratory use. The NI-5734 has both AC and DC coupling. The coupling type is selectable and can be changed according to user’s requirements. It has a programmable gain ranging from 0 dB to 12 dB.

The NI 5734 module has 16 bits analog input resolution and can operate at 120 MS/s sample rate per channel through a high-performance Analog to Digital Converter. The NI‑5734 additionally has a Bessel, bypass hardware filters, and a selectable elliptic filter. The NI-5734 module’s filter bypass path allows under sampling input filtering and provides maximum flexibility.

The NI-5734 Digitizer Adapter Module for FlexRIO has two instantaneously sampled channels. The NI-5734 can perform real time streaming and processing for analog information. The NI-5734 module’s elliptic filter helps increase flat bandwidth; this filter is suitable for frequency-domain applications. The NI-5734 module’s selectable Bessel filter decreases group delay over the input bandwidth and is used for time domain application. This Digitizer Adapter Module for FlexRIO is well-suited for applications which require organized high-performance solutions. This module is also great for applications such as in-line data handling and high data streaming rates.
