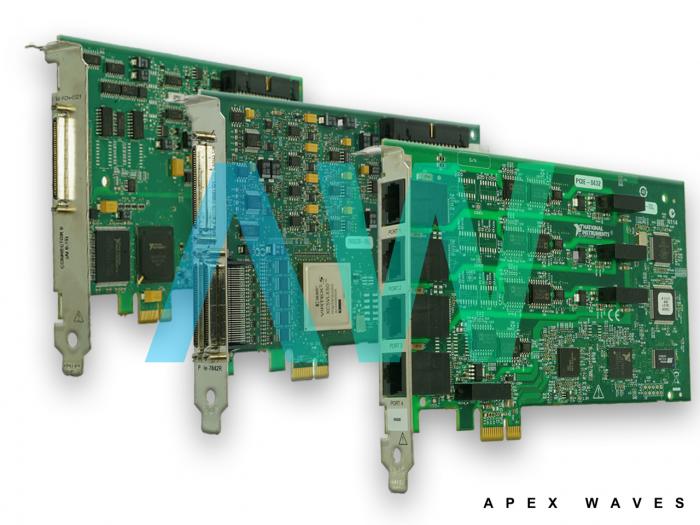

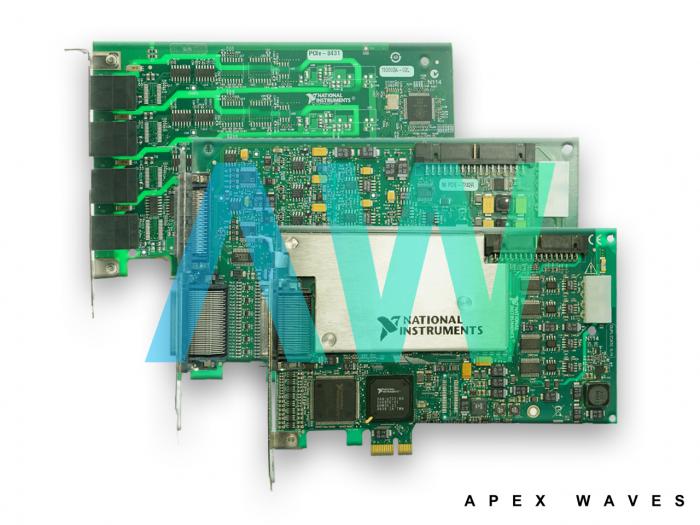

National Instruments PCIe-8233 Frame Grabber Device

The PCIe‑8233 (Part Number: 782997-01) is a GigE Vision Frame Grabber Device with Power over Ethernet (PoE) innovation. This model gives streamlined execution of high-determination and high-outline rate cameras through the blend of autonomous Gigabit Ethernet ports and NI's superior GigE Vision driver. PoE decreases the requirement for extra outer power supplies by driving cameras over the Ethernet bus, which streamlines framework outline and cabling many-sided quality.

Gigabit Ethernet (GigE) is the quickest developing interface for advanced cameras in the field of modern picture handling. It is a generally appropriate computerized interface, which gives the possibility to deliver cameras that can supplant simple gadgets in relatively every application. Gigabit Ethernet offers the greatest innovative adaptability with respect to data transmission, link length, and multi-camera usefulness. It is the correct decision for information rates of up to 100 MB/s and a greatest link length of 100 meters. In addition, it makes complex setups with a few cameras exceptionally basic. GigE cameras, such as the NI PCIe-8233, can utilize PoE to draw power through the information link. For this to work, the setup requires an appropriate Gigabit Ethernet link. Moreover, either an uncommon PC connector card, or an extraordinary switch, center point or PoE injector put between the PC and camera is important. The PoE setup kills the requirement for a different power supply and link, making establishment more straightforward, particularly in applications where space is tight. The utilization of one link for control supply and information exchange additionally spares costs, since less parts should be bought and introduced.
