GPIB-232CV-A Technical Specifications:
| Manufacturer | National Instruments |
|---|---|
| Model | GPIB-232CV-A |
| Part Numbers | 776669-01, 776669-02, 776669-03, 776669-04, 776669-05, 776669-06, 776898-01, 776898-31 |
| Type | GPIB-to-RS232 Converter |
| Repair Evaluation | $150 |
GPIB-232CV-A
Home GPIB-232CV-A
| Part Number | GPIB-232CV-A |
| Manufacturer/Brand | National Instruments |
| Description | GPIB-232CV-A, AC or DC Versions, GPIB-to-RS232 Controller |
Speak to a sales representative for pricing & lead time:
Phone:1-919-809-5227
• Quick Quotes: Receive Price & Availability Today!
• Warranty: 1 Year Warranty Covered by Apex Waves
• Calibration: Ask About Our Tiered Calibration Levels
• Option & Modules: Confirm Your Requirements or Versions
• Repair: Cost & Lead Time Available Upon Request for Service
- Description
- Technical Specifications
- FAQ
National Instruments GPIB-232CV-A GPIB-to-RS232 Converter

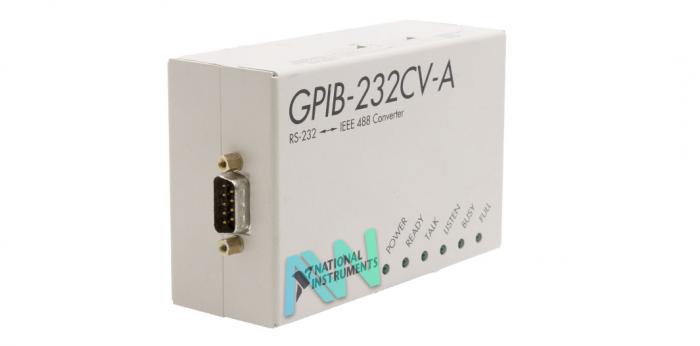

The NI GPIB-232CV-A (Part Numbers: 776669-01, 776669-02, 776669-03, 776669-04, 776669-05, 776669-06, 776898-01, and 776898-31) is a GPIB-to-RS-232 Converter. This model translates data between the two ports (GPIB and Serial port) transparently without special commands or control codes. The integrated 256 kilobyte sized RAM buffer and DMA of the GPIB-232CV-A help with the overall efficiency of the interface system. This buffer keeps the host computer offloaded during plotter and printer applications. The device has a RS232 data transfer rate of up to 38.4 kb/s. The NI GPIB-232CV-A is offered in a compact build with the power switch and indication LEDs on its front panel and ports on the rear panel.
This GPIB-to-RS232 Converter can be used with all PCs virtually. With this model, the user can link a GPIB controller to any RS-232 enabled instrument. Additionally, the user can tie an IEEE 488 (GPIB) device to any compatible PC or laptop via a computer serial port. The National Instruments GPIB-232CV-A Converter allows the user to connect a GPIB spectrum analyzer to a serial port enabled PC or it can be used to connect a serial device (with an RS-232 port), such as a plotter or printer to a GPIB network.
With this model, the user can transfer data in either direction. This device is offered in two versions: AC and DC. Like other models in this family, the NI GPIB-232CV-A can be configured to operate in either controller mode or device mode. In device mode, the unit will serve as a slave under another GPIB controller. However, in controller mode, the GPIB 232CV A operates as a GPIB controller that directs a single GPIB device to listen or talk.
The NI device weighs 12 oz. The DC version measures 3.0 x 1.7 x 4.7 in. in physical dimensions while the AC version has the physical dimensions: 3.0 x 1.1 x 4.7 inches. The converter has recommended operating and storage temperature ranges of 10 to 40 °C and 0 to 70 °C respectively.
GPIB-232CV-A Obsolete Status has been declared by National Instruments, but the controller will still be available for purchase and repairs at Apex Waves.
| Model | GPIB-232CV-A |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 776669-01, 776669-02, 776669-03, 776669-04, 776669-05, 776669-06, 776898-01, 776898-31 |
| Type | GPIB-to-RS232 Converter |
| RS232 Data Transfer Rate | up to 38.4 kb/s |
| RAM Buffer | 256 KB |
| I/O Connectors | GPIB Port: IEEE 488 standard 24-pin Serial Port: Standard 9-pin male D-Sub |
| Dimensions | DC Version: 3.0 by 1.7 by 4.7 in. AC Version: 3.0 by 1.1 by 4.7 in. |
| Weight | 12 oz. |
| Warranty | Three Year Warranty |
| GPIB-232CV-A Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments GPIB-232CV-A Frequently Asked Questions
Question: What are the differences between the multiple part numbers for the National Instruments GPIB-232CV-A Converter?
Answer: The National Instruments GPIB-232CV-A Converter has an AC and DC version. There is an AC version with either a U.S. 120 VAC power cord (Part Number: 776669-01), a Swiss 220 VAC power cord (Part Number: 776669-02), an Australian 240 VAC power cord (Part Number: 776669-03), a Universal Euro 240 VAC power cord (Part Number: 776669-04), a North American 240 VAC power cord (Part Number: 776669-05), or a United Kingdom 240 VAC power cord (Part Number: 776669-06). The DC version comes with a 115 VAC Power Supply (Part Number: 776898-01) or a 230 VAC Power Supply (Part Number: 776898-31).
Question: What is the GPIB transfer rate when the GPIB reads into buffer memory on the NI GPIB-232CV-A?
Answer: The GPIB transfer rate when the GPIB reads into buffer memory on the NI GPIB-232CV-A is 625 kbytes/s maximum.
Question: Which applications are suitable for the GPIB-232CV-A?
Answer: The following applications are suitable for the GPIB-232CV-A: interfacing an RS-232 instruments to an IEEE 488 bus system and printing from a laptop to an IEEE 488 printer.
Question: How many LEDs are on the NI GPIB-232CV-A?

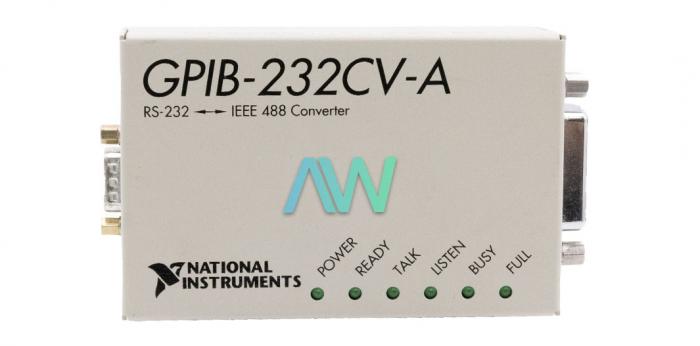

Answer: The NI GPIB-232CV-A has six LEDs on the top panel: POWER, READY, TALK, LISTEN, BUSY, and FULL.
