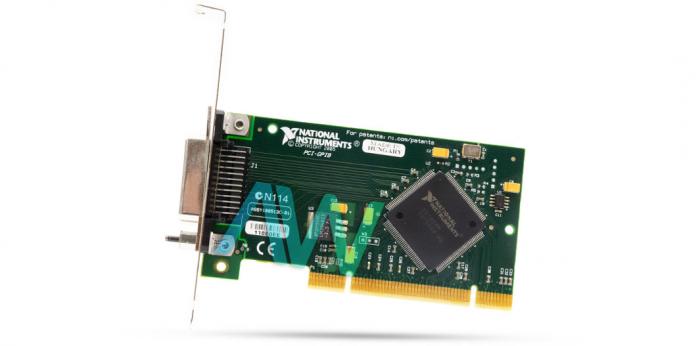

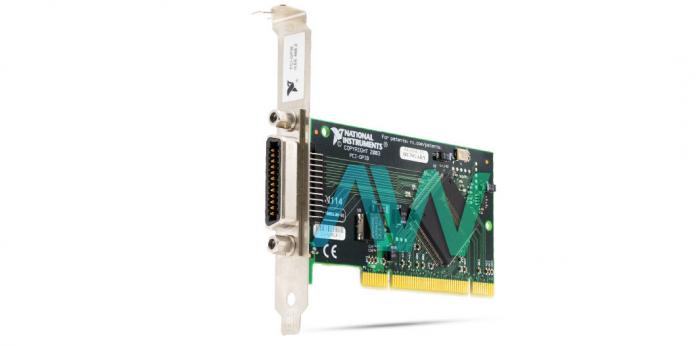

National Instruments PCI-GPIB GPIB Instrument Control Device

The PCI-GPIB (Part Numbers: 778686-01, 778032-01, 783007-01) can support information exchange rates of more than 1.5 MB/s utilizing the IEEE 488.1 three wire interlocked handshake. This device also actualizes the fast IEEE 488.1 non-interlocked handshake (HS488) for benchmarked information exchanges at more than 7.7 MB/s, and has a sampling rate of 20 MHz. The locally available bus ace DMA controller implies that there are no microchip interferences in information exchange. The device is equipped with an IEEE 488 standard 24-pin I/O connector, and has a timestamp resolution of 50 ns.

A PCI-GPIB Board can be a Talker, Listener, and additionally Controller. As the name suggests, a Talker sends information to at least one Listener, A Listener acknowledges information from a Talker, and a Controller deals with the stream of data over the bus. A NI PCI-GPIB is a Listener when its information designs and ranges are set, then functions as a Talker when it sends its readings to the PC. The Controller is accountable for all interchanges over the bus. The Controller's activity is to ensure just a single gadget attempts to talk at once, while ensuring the right Listeners are focusing when the Talker talks. Each PCI GPIB Controller Card’s framework has a solitary framework controller. The framework controller is accountable for the transport and is in charge as the transport is fueled up.

The PCI GPIB is an 8-bit parallel information exchange bus. Notwithstanding the 8 information bits, the bus conveys three handshaking lines and five NI PCI GPIB administration and control lines. The rest of the standard 24 stick GPIB link is utilized for the link shield, signal grounds and returns. The link length between back to back gadgets cannot be more prominent than 4 meters, while normal link length must be 2 meters or less. Longer length frameworks are conceivable, however just with the utilization of a PCI-GPIB National Instruments extender card.

The NI device has the physical dimensions: 5.3 x 4.2 in. or 4.72 x 2.54 in. (based on serial number. It has a recommended operating temperature range of 0 °C to 55 °C, and a storage temperature range of -20 °C to 70 °C.
