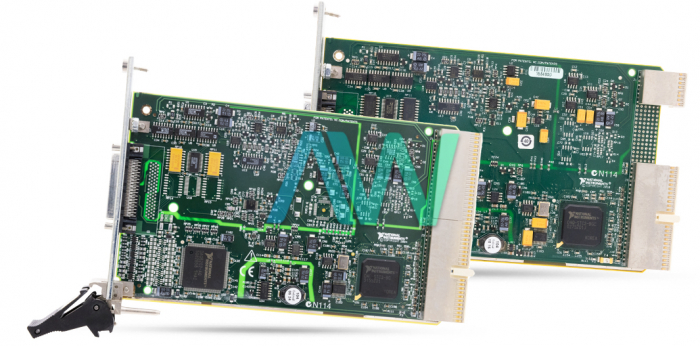

National Instruments PXI-6221 PXI Multifunction I/O Module

The PXI-6221 (Part numbers: 779629-01, 779113-01) is a PXI Multifunction I/O Module with16 AI (16 Bits, 250 kS/s), 16 AO, and 24 DIO. The NI PXI-6221 offers simple I/O, communication computerized I/O, two 32-bit counters/timers, and digital shots. Part number 779113-01 is the version of the PXI-6221 that is intended for use as a  SCXI Control of PXI/SCXI Combo Chassis. The PXI 6221 requires 1 shielded or unshielded cable and 1 connector block (either screw terminals or BNC termination) for operation. This Multifunction I/O Module has solid, minimal effort DAQ capacities in an extensive variety of uses, from basic applications in lab computerization, research, design verification/testing, and manufacturing testing. The user can also add the capacity for high voltage estimations and sensors to a gadget with SCC or SCXI signal conditioning modules. The NI-DAQmx driver and the included setup utility aid in making configurations and estimations easier. The device can be programmed using software packages/application development environments (ADEs) such as LabVIEW, LabWindows/CVI, or Measurement Studio.

When the user requires execution and precision from a data acquisition gadget in an electrically noisy or harsh environment, the National Instruments PXI-6221 and other digital I/O gadgets from the M Series are the answer. The National Instruments M Series modules are additionally an affordable solution for any user. Mechanical DAQ gadgets offer an arrangement of high-reliability highlights, which includes isolation, ± 20 mA current I/O, 24 V digital Iogic levels, and digital debounce filters. Isolation prevents ground loops, rejects high common-mode voltages, and protects clients and gear from high-voltage transients. The device has a recommended warm-up time of 15 minutes, and should be calibrated at least once a year. It is equipped with 1 68-pin VHDCI I/O connector.

The standard 3U PXI device weighs 5.7 oz. It has a recommended operating temperature range of 0 ºC to 55 ºC, a storage temperature range of -20 ºC to 70 ºC, a non-condensing humidity range of 10% RH to 90% RH, and an operating and non-operating random vibration of 0.3 grms and 2.4 grms respectively–all at a frequency range of 5 Hz to 500 Hz.

PXI-6221 Mature Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.
