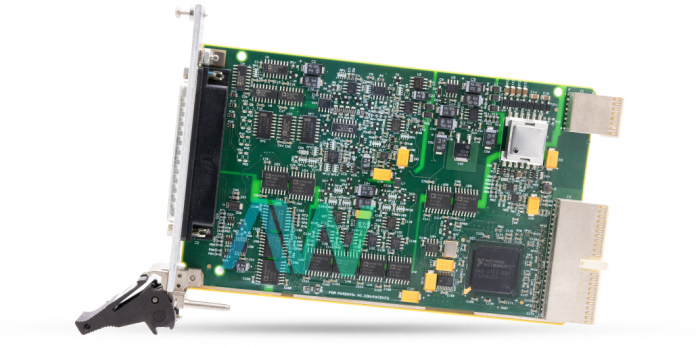

National Instruments PXI-6230 PXI Multifunction I/O Module

The PXI-6230 (Part Number: 779616-01) PXI Multifunction I/O Module with Bank Isolation, 8 Analog inputs (16 Bits, 250 kS/s), 4 Analog outputs, 6 DI, 2 counters/timers, and 4 DIO. This module from the M Series also offers digital triggering. The digital inputs and outputs are perfect with 5 V TTL/CMOS signals. The NI PXI-6230 consolidates the safety and execution benefits of insulation with elite timing, amplification, and calibration technologies to provide exact estimations and control.

The PXI-6230 is well-suited for test, estimation, control, and design applications in conditions with high voltages and electrical noise. The PXI-6230 can be utilized to read from encoders, flow meters, and proximity sensors, along with control valves, pumps, and relays.

With the NI PXI-6230, it is possible to utilize the extensive variety of I/O: from 80 analog inputs to 48 digital lines - to measure and check prototype designs. Gadgets of the M Series and SignalExpress Interactive Measurement Software from National Instruments bring table estimations to the PC. With NI SignalExpress Interactive steps based on configuration, the user can rapidly generate a design verification test. With quick low-cost acquisition and generation rates, the National Instruments PXI-6230 combined with SignalExpress provides on-the-go design analysis. The user can change and verify SignalExpress projects to NI LabVIEW applications for immediate utilization of M Series DAQ and bridges.
