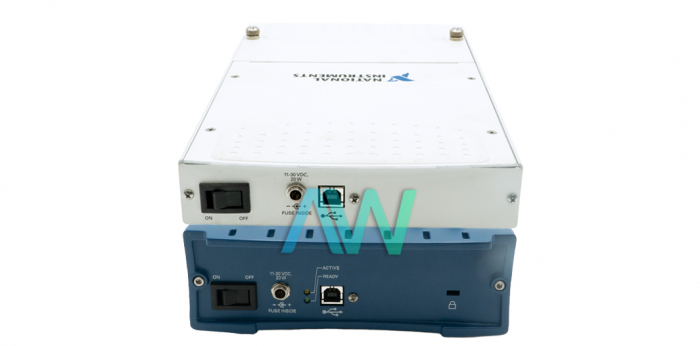

National Instruments USB-6221 Multifunction I/O Device

Featuring 16 single ended analog input channels, USB-6221 (Part Numbers: 780117-01, 780117-02, 780117-03, 780117-04, 780117-06, 780117-07, 780117-09, 780117-10, 780117-12, and 195959-02) is a Multifunction I/O Device from the M Series by National Instruments. The analog input of the device can also be configured as 8 differential channels, providing versatile connectivity options. In addition, the NI USB-6221 is equipped with 2 analog output channels and 24 digital I/O lines. Both the analog input and the analog output capabilities of the I/O device acquire samples at a maximum rate of 250 kS/s. Offering versatile features such as correlated digital I/O, analog I/O, digital triggering, and two 32-bit timers, the NI USB-6221 Multifunction I/O Device is an excellent choice for a wide range of applications in manufacturing test, laboratory automation, design test, research, and more.

The NI USB-6221 comes in multiple variations, differing in their voltage and compatibilities for different countries. Part number 780117-01 (USA) has a voltage of 120 V, while number 780117-02 (Swiss) reaches a voltage of 220 V. Part numbers 780117-03 (Australia), 780117-04 (Euro), 780117-06 (U.K.), and 780117-07 (Japan) each have a voltage of 240 V. Part number 780117-09 (Korea) has a voltage of 220 VAC, while the voltage of part number 780117-10 (China) is 220 V. Part number 780117-12 (Taiwan) has the lowest voltage at 110 V. In addition, part number 195959-02 represents the board only version of the NI USB-6221 I/O Device.

By using compatible signal conditioning accessories (SCC or SCXI), the NI USB-6221 is capable of high-voltage measurements. The digital I/O lines of the device can be used for pulse-width modulation to control lamps, pumps, valves, fans, motors, and other equipment. The digital lines featured on the NI USB-6221 device can drive 24 mA signals.

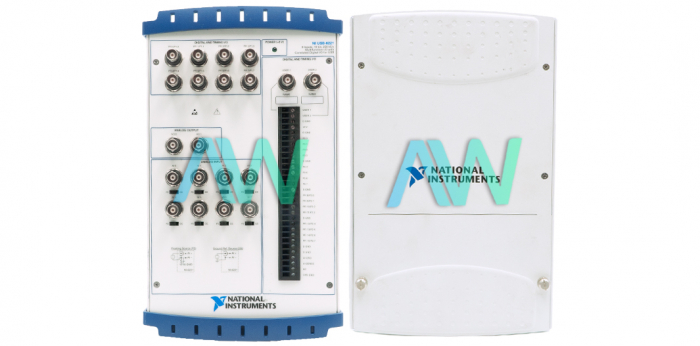

There are various options for I/O connectivity with the NI USB-6221. PCI/PXI connectors are equipped with a single 68-pin VHDCI, while USB Screw Terminals feature 64 screw terminals. USB BNC connector types are equipped with 20 BNCs and 30 screw terminals.

Obsolete Status has been announced for the USB-6221 by National Instruments, but the Multifunction I/O Device will still be available for purchase and repairs by Apex Waves.
