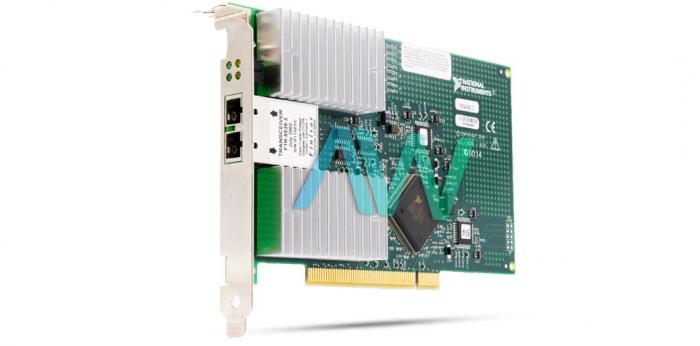

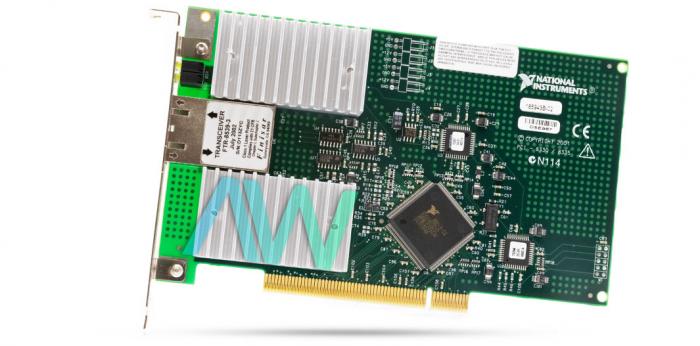

National Instruments PCI-8335 MXI-3 Interface Board

The NI PCI-8335 (Part number: 777946-01) is a PCI master/slave gadget that uses the PCI-PCI connect registry set. MXI-3 utilizes information lines to store information for transmission and furthermore utilizes line information to store information received while waiting for access to the goal PCI bus. MXI-3 ASIC transmits information to the parallel-to-arrangement converters and gets information from the arrangement to parallel converters. The serial transmitter is a parallel-to-serial information converter. The parallel-to-serial converter serializes the 20-bit wide parallel from the MXI-3 ASIC and sends it to the handset. MXI-3 expands on the standard PCI-to-PCI connect engineering by viably splitting the extension into two parts associated to a 1.5 Gb/s serial connection.

The PCI-8335 MXI-3 Interface Board works precisely as a solitary, standard PCI-to-PCI connect. Exchanges between the two PCI transports happen as indicated by the windowing rules given in the PCI-to-PCI Bridge Architecture Specification variant 1.0 and the PCI Specification Revision 2.1. MXI-3 benefits completely from every one of the highlights of PCI-to-PCI connecting because it agrees to the point by point prerequisites characterized in the crossing over determination.

National Instruments built up the MXI-3 ASIC to give a quick, productive connection between the PCI bus and a 1.5 Gb/s serial interface. The MXI-3 ASIC consolidates a total PCI bus interface and works at the full frequency of the 32-bit PCI bus at 33 MHz. The ASIC additionally incorporates the institutionalized PCI-to-PCI connect enlist set to guarantee finished programming straightforwardness for gadget drivers and application code.

PCI-8335 Obsolete Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
