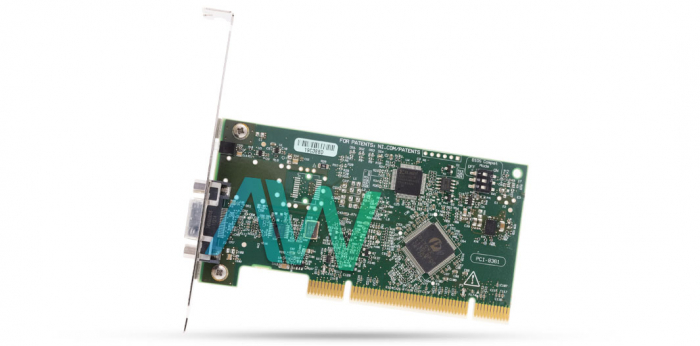

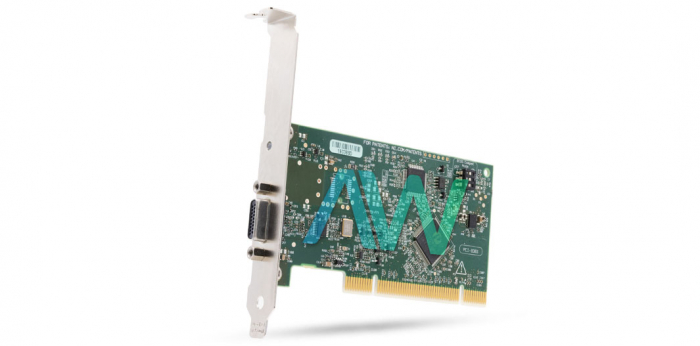

National Instruments PCI-8361 Device for PXI Remote Control

The PCI‑8361 (Part number: 781394-01) is an MXI‑Express x1 Remote Controller for gadgets or frameworks over cabled PCI from a PC with a PCI slot. The NI PCI-8361 additionally has a vertical segment of 16 LEDs on the rear of the card close to the front connector. The PCI‑8361 device gives a PCI interface over a copper link to the PXI‑8360 remote control module when utilized for PXI framework control. This connection is straightforward to programming applications and drivers, so PCs and servers can control associated gadgets with no extra programming. With NI remote controllers, PXI modules can be utilized as though they are PCI gadgets specifically introduced in the PC. The user can utilize MXI-Express on an assortment of well-known PCs, workstations, and motherboards containing a PCI, PCI Express, or ExpressCard opening. Be that as it may, certain complex MXI-Express arrangements may represent a test for the BIOS of the frameworks to effectively list the greater part of the important assets. This indication, known as a BIOS contrariness, happens just in uncommon circumstances. To address these side effects, National Instruments gives MXI-Express BIOS similarity programming. The device is equipped with an 18-pin PCI express x1 D-SUB cable connector type. It has a sustained throughput of up to 100 MB per second.

Since working frameworks and drivers generally make the suspicion that PCI gadgets will be available in the framework from power on to shut down, it is critical not to power off the development undercarriage until after the host PC is controlled off. Fueling off the extension case while the host is still on can cause crashes or hangs. In any case, once the host PC is fueled off, the request that the development frame is controlled off is not vital.

The PCI‑8361 weighs 0.11 lb, and measures 2.48 x 4.76 in. in physical dimensions. The NI device has recommended operating and storage temperature ranges of 0 to 55 °C and -20 to 70 °C respectively, non-condensing operating and storage humidity ranges of 10 to 90% and 5 to 95% respectively. It is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 61010-1, and CSA 61010-1.
