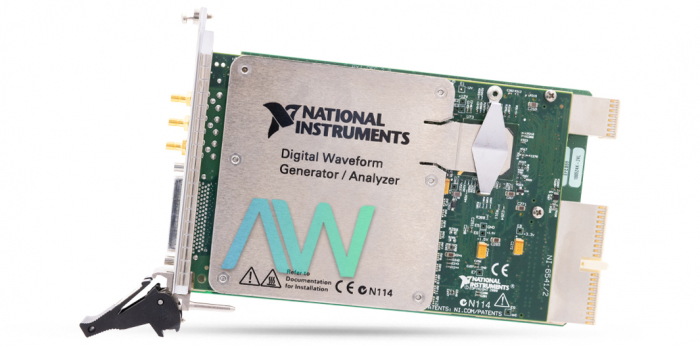

National Instruments PXI-6541 Digital Waveform Instrument

The National Instruments PXI-6541 (Part Numbers: 778952-01, 778952-02, 778952-03, 191151D-02L) is a 50 MHz Waveform Generator/Analyzer for interfacing to computerized hardware. This module highlights 32 channels with per-channel course control and profound locally available memory with triggering and pattern sequencing. Through the NI-HSDIO driver, the user can arrange the module for 5.0, 3.3, 2.5, or 1.8 V logic. The user can additionally utilize the NI PXI-6541 with the NI Digital Waveform Editor, an intelligent programming instrument for making and altering computerized waveforms. With the SMC, the user can make mixed signal test frameworks with digitizers, subjective waveform generators, and other computerized waveform generator/analyzers. The user can also synchronize numerous advanced gadgets to manufacture low-skew multichannel frameworks for interfacing to high-pin-count digital ICs and hardware.  This instrument is represented by three part numbers with differing memory capacities: the PXI-6541 1 Mbit (Part Number: 778952-01), PXI-6541 8 Mbit (Part Number: 778952-02), and PXI-6541 64 Mbit (Part Number: 778952-03).

The NI-HSDIO enables the user to design and control the NI PXI-6541. NI-HSDIO gives application interfaces to numerous development environments, while following IVI API rules. The National Instruments Measurement and Automation Explorer (MAX) is included and furnishes test boards with essential acquisition and generation functionality for the PXI-6541. (MAX is incorporated on the NI-HSDIO driver CD)

The PXI-6541 uses the Synchronization and Memory Core (SMC) innovation in which waveforms and guidelines share locally available memory. Parameters such as number of content directions, maximum number of waveforms in memory, and number of tests (S) accessible for waveform storage are adaptable and client characterized.

PXI-6541 Mature Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
