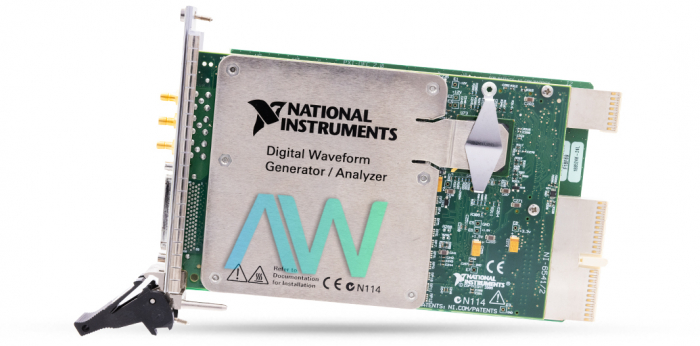

National Instruments PXI-6542 Digital Waveform Instrument

The NI PXI-6542 can be used with a Digital Waveform Editor, an intuitive programming instrument for making and altering advanced waveforms, that allows the user to import existing test designs from mainstream spreadsheets and VHDL recreation bundles into ASCII or dump value changes (VCD) formats. Once imported, the user can see the waveforms graphically and alter them intelligently for new gadgets or requirements and similarity. The user can likewise fabricate new waveforms with built-in padding patterns, such as, pseudo-irregular bit-streams (PRBS) and count patterns up/down. When the user is prepared to test their gadget, the waveforms will be transported in without issues in NI LabVIEW, LabVIEW SignalExpress, and C. The Digital Waveform Editor is incorporated with the 8 and 64 Mbit/channel memory models and is an extra feature for use with the 1 Mbit/channel version. The PXI-6542 1 Mbit version is represented by the Part Number 778953-01, the PXI-6542 8 Mbit version is Part Number 778953-02, and the PXI-6542 64 Mbit variation is Part Number 778953-03.

With the NI PXI-6542 Digital Waveform Instrument, the user can assemble firmly synchronized mixed signal test frameworks, so they can consolidate numerous gadgets to make models and firmly synchronized mixed signal test frameworks. For adjusted timing prerequisites, these PXI modules are synchronized in phase with the 10 MHz reference clock in the PXI back plane. If the user has an outer accuracy reference, they can import it through the SMB connector on the front board. The PXI 6542 offers 32 channels with per-channel bearing control, an interactive waveform and content editorial manager programming, 100 MHz maximum clock rate, NI Synchronization and Memory Core (SMC) gadget, and various other features.

PXI-6542 Mature Status has been announced by National Instruments, but the instrument will still be available for purchase and repairs by Apex Waves.
