NB1 Technical Specifications:
| Manufacturer | National Instruments |
|---|---|
| Model | NB1 |
| Part Numbers | 180524-02, 180524-04, 180524-05, 180524-10, 180524-20, 180524-30, 180524-50 |
| Type | Ribbon Cable |
NB1
Home NB1
| Part Number | NB1 |
| Manufacturer/Brand | National Instruments |
| Description | NB1, 50-Pin, Female IDC, Ribbon Cable |
Speak to a sales representative for pricing & lead time:
Phone:1-919-809-5227
• Quick Quotes: Receive Price & Availability Today!
• Warranty: 1 Year Warranty Covered by Apex Waves
• Calibration: Ask About Our Tiered Calibration Levels
• Option & Modules: Confirm Your Requirements or Versions
• Repair: Cost & Lead Time Available Upon Request for Service
- Description
- Technical Specifications
National Instruments NB1 Ribbon Cable
The National Instruments NB1 is a 50-Pin, Female IDC Ribbon Cable. This cable is used to connect 50-pin accessories to 50-pin DAQ (data acquisition boards). The NI NB1 Cable has two 50-pin female connections. This cable can be considered for a variety of applications since it can be used with any 50-pin DAQ board or card. The National Instruments NB1 Ribbon Cable has 1 ribbon connection and does not have twisted pairing. This Ribbon Cable is available in 7 lengths 0.2 m (Part Number: 180524-02), 0.4 m (Part Number: 180524-04), 0.5 m (Part Number: 180524-05), 1 m (Part Number: 180524-10), 2 m (Part Number: 180524-20), 3 m (Part Number: 180524-30), and 5 m (Part Number: 180524-50).
The NB1 has a simple design, but offers better performance than the other 50-pin direct connectivity cables available. Each of the 50-pins on the connectors terminates into the corresponding pin of the other connector. The NB1 Cable also comes as an integral part of the R6850 Cable Assembly Kit.
| Model | NB1 |
|---|---|
| Part Numbers | 180524-02, 180524-04, 180524-05, 180524-10, 180524-20, 180524-30, and 180524-50 |
| Manufacturer | National Instruments |
| Type | Ribbon Cable |
| Cable Lengths | 0.2 m, 0.4 m, 0.5 m, 1 m, 2 m, 3 m, or 5 m |
| Back-End Connection | 50-Pin, Female IDC |
| Front-End Connection | 50-Pin, Female IDC |
| Twisted Pairing | No |
| Number of Ribbon Connections | 1 |
| Warranty | 2-3 Year Warranty |
| NB1 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
NB1

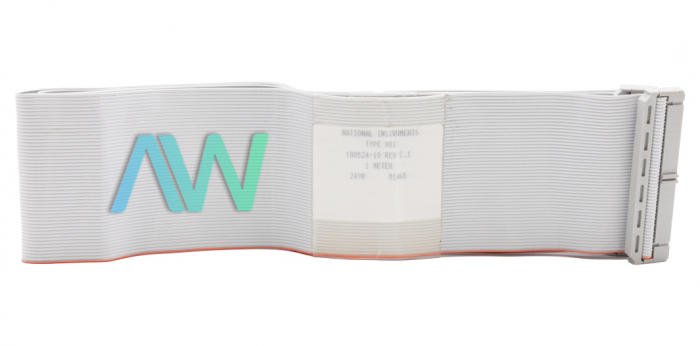

Main Image

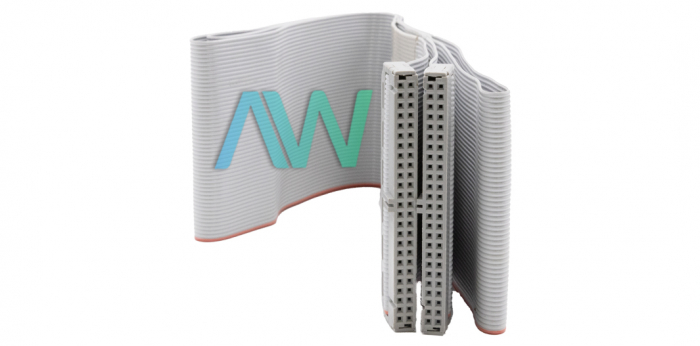

Secondary Image
NB1, 50-Pin, Female IDC, Ribbon Cable
