SH68-C68-S Technical Specifications:
| Manufacturer | National Instruments |
|---|---|
| Model | SH68-C68-S |
| Part Numbers | 186381-0R5, 186381-01, and 186381-02 |
| Type | Shielded Cable |
| Repair Evaluation | $150 |
SH68-C68-S
Home SH68-C68-S
| Part Number | SH68-C68-S |
| Manufacturer/Brand | National Instruments |
| Description | SH68-C68-S, 34 Twisted Pairs of Wire, Shielded Cable |
Speak to a sales representative for pricing & lead time:
Phone:1-919-809-5227
• Quick Quotes: Receive Price & Availability Today!
• Warranty: 1 Year Warranty Covered by Apex Waves
• Calibration: Ask About Our Tiered Calibration Levels
• Option & Modules: Confirm Your Requirements or Versions
• Repair: Cost & Lead Time Available Upon Request for Service
- Description
- Technical Specifications
- FAQ
National Instruments SH68-C68-S Cable
The SH68-C68-S (Part Numbers: 186381-0R5, 186381-01, 779505-30and 186381-02) is a 68-Pin VHDCI to 68-Pin .050 Series D-Type Cable, which connects NI-73xx Motion Controllers, PXI Motion Controllers, and PCI Controllers to the UMI-7764. The 68-pin VHDCI male connector connects to the NI Motion Controllers, while the 68-pin 0.50 Series D-type connector connects to the NI UMI-7764. The National Instruments SH68-C68-S can be used with the PXIe-6738 and PXIe-6739, but only when integrating into a NI-6723 system.
The NI SH68-C68-S is a Shielded Cable with 34 twisted pairs of wire. The SH68-C68-S Cable has 1.45 +/-0.05 ns/ft time delay and 132 ohms +/-10 ohms @ TDR differential impedance. This cable has a mutual capacitance of 12.5 pF/ft maximum.
The National Instruments SH68-C68-S Cable has three versions with different part numbers. The only difference between the three variations is the length of the cable. The first part number, 186381-0R5, is 0.5 m. The next part number, 186381-01, is 1 m. Lastly, part number 186381-02 has a length of 2 m.
| Model | SH68-C68-S |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 186381-0R5, 186381-01, and 186381-02 |
| Type | 68-Pin VHDCI to 68-Pin .050 Series D-Type Cable |
| Cable Length | 0.5 m, 1 m, or 2 m |
| Compatible NI Models | NI motion controllers and UMI-7764 motion interfaces |
| Time Delay | 1.45 +/-0.05 ns/ft |
| Impedance | (Differential): 132 ohms +/-10 ohms @ TDR (Single-ended): 90 ohms +/-10 ohms @ TDR |
| Mutual Capacitance | 12.5 pF/ft (Max) |
| Channel Crosstalk | -65 dB |
| Warranty | 2-3 Year Warranty |
| SH68-C68-S Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments SH68-C68-S Frequently Asked Questions
Question: Can the SH68-C68-S Cable be used with the NI-6738/6739?
Answer: Yes, the SH68-C68-S Cable can be used with the NI-6738/6739 when integrated into a NI-6723 system.
Question: How many pairs of wire does the SH68-C68-S have?
Answer: The SH68-C68-S has 34 twisted pairs of wire.
Question: Is the National Instruments SH68-C68-S a shielded cable?
Answer: Yes, the National Instruments SH68-C68-S is a shielded cable.
SH68-C68-S

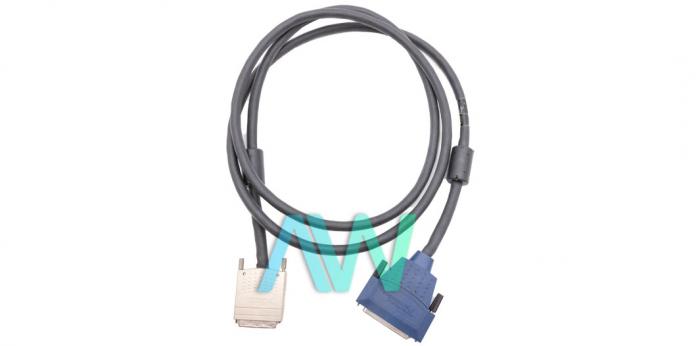

Main Image

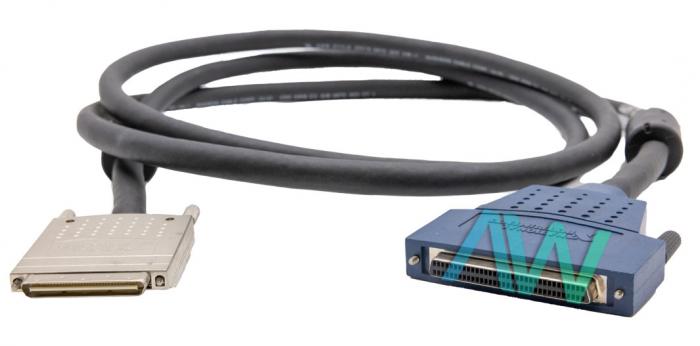

Secondary Image
SH68-C68-S, 34 Twisted Pairs of Wire, Shielded Cable
Call
919 809 5227
Rated 0/5 based on 0 ratings.
- SH68-C68-S Technical Specifications
| Manufacturer: | National Instruments |
|---|---|
| Model: | SH68-C68-S |
| Part Numbers: | 186381-0R5, 186381-01, and 186381-02 |
| Type: | Shielded Cable |
| Repair Evaluation: | $150 |
