PCI-1200 Technical Specifications:
| Manufacturer | National Instruments |
|---|---|
| Model | PCI-1200 |
| Part Numbers | 777386-01 and 777097-01 |
| Type | Multifunction DAQ |
| Repair Evaluation | $150 |
PCI-1200
Home PCI-1200
| Part Number | PCI-1200 |
| Manufacturer/Brand | National Instruments |
| Description | NI PCI-1200, 12 Bit, 8 Analog Input Channel, 100 kS/s, Multifunction DAQ |
Speak to a sales representative for pricing & lead time:
Phone:1-919-809-5227
• Quick Quotes: Receive Price & Availability Today!
• Warranty: 1 Year Warranty Covered by Apex Waves
• Calibration: Ask About Our Tiered Calibration Levels
• Option & Modules: Confirm Your Requirements or Versions
• Repair: Cost & Lead Time Available Upon Request for Service
- Description
- Technical Specifications
- FAQ

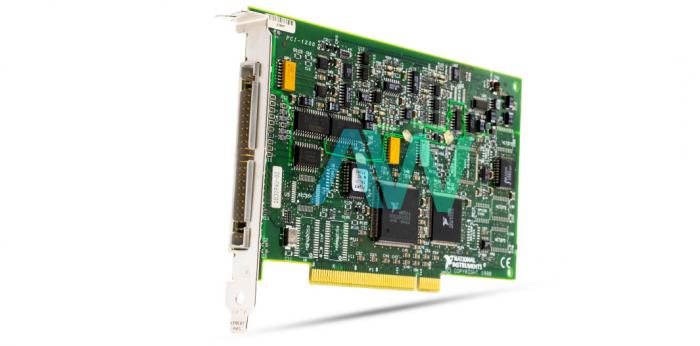

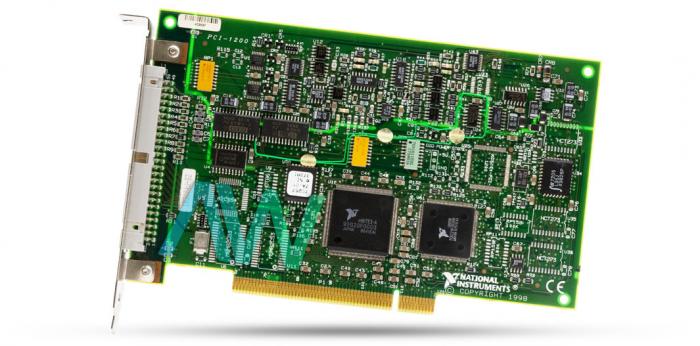

National Instruments PCI-1200 Multifunction DAQ
The National Instruments PCI-1200 (Part Numbers: 777386-01 and 777097-01) is a high-performance, multifunction DAQ device designed for PCI bus computers. This device comes equipped with eight Analog Input (AI) channels that can be configured as either four differential or eight single-ended inputs with a maximum sampling rate of 100 kS/s. The PCI-1200 boasts a 12-bit successive-approximation type A/D converter (ADC), two 12-bit DACs with voltage outputs, 24 lines of TTL-compatible DIO, and three 16-bit timer/counters for timing I/O. The device has a 50 pin male I/O connector, making it a versatile choice for test and measurement applications of all sizes.
In terms of software, the features of the PCI-1200 board can be fully utilized through the use of NI-DAQ from National Instruments. This software is equipped with a comprehensive library of functions that can be called by the user from the ADE, enabling users to utilize all of the features of the Multifunction DAQ. The PCI-1200 is entirely software configurable, allocating resources such as the interrupt level and the base memory address automatically. As a result, there are no configuration steps required after booting up the system.
After a software level reset or upon power-up, the PCI-1200 DAQ Board is set to bipolar ±5 V Analog Input range and bipolar ±5 V Analog Output range. Two channels of Analog Output voltage are offered, allowing users to configure each analog output individually. As a result, users are able to configure each one of the two AO output channels of the PCI-1200 for either bipolar or unipolar output.
The power consumption of the PCI-1200 DAQ measures 425 mA at +5 VDC. Built with a slave type bus interface, the module measures 17.45 by 10.56 cm (6.87 by 4.16 in.) in physical dimensions. The recommended operating operating temperature range of the device ranges from 0 to 50 °C, while the recommended storage temperature range measures from –55 to 150 °C. For both operating and storage conditions, the recommended humidity range is 5% to 90% (noncondensing).
The PCI-1200 has been announced Obsolete by National Instruments, but it is still available for purchase and repairs by Apex Waves.
| Model | PCI-1200 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 777386-01, 777097-01 |
| Type | Multifunction I/O Device |
| Analog Inputs | 8 SE/4 DI |
| Resolution | 12 bits |
| Sampling Rate | 100 kS/s |
| Dimensions | 6.9 x 4.2 in. |
| Weight | 1.7 lb. |
| I/O Connectors | 50-pin male |
| Warranty | Three Year Warranty |
| PCI-1200 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments PCI-1200 Frequently Asked Questions
Question: What is the difference between the two part numbers for the National Instruments PCI-1200 DAQ Board?
Answer: The National Instruments PCI-1200 DAQ Board can be ordered for different operating systems: part number 777386-01 for Windows 2000/NT/9x or part number 777097-01 for Mac OS.
Question: What is the NI PCI-1200 driver?
Answer: The NI PCI-1200 driver is NI-DAQ.
Question: How do I calibrate the PCI 1200 National Instruments?
Answer: The PCI 1200 National Instruments can be self-calibrated with circuitry that adjusts for offset and gain errors.
Question: What is the value of the base clock on the PCI-1200 NI?
Answer: The base clock on the PCI-1200 NI is 2 MHz.
