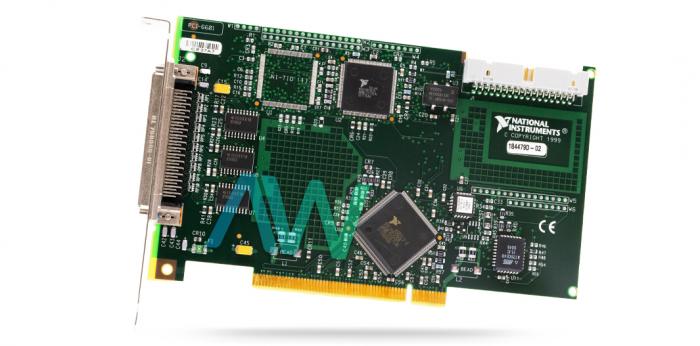

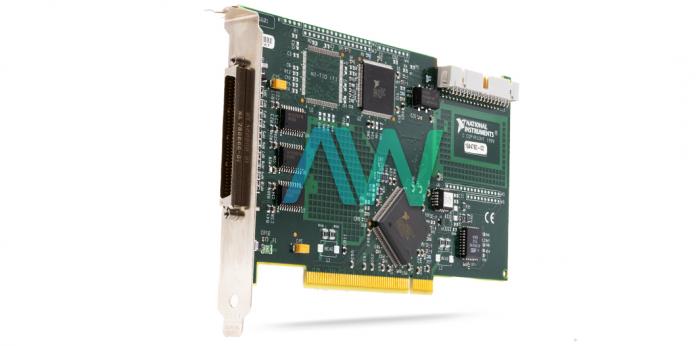

National Instruments PCI-6601 Counter/Timer Device

The PCI‑6601 (Part Number: 777918-01) performs encoder position estimations, event checking, period estimations, pulse width estimations, pulse generation, pulse prepare generation, and frequency estimation. The PCI‑6601 can perform one rapid DMA exchange. The NI PCI-6601 is a timing and computerized I/O gadget for use with the PCI bus in PC compatible PCs, PXI frame, or CompactPCI body. The National Instruments NI PCI 6601 offers 32 bidirectional digital channels and up to 32 lines of exclusively configurable, TTL/CMOS-compatible advanced I/O.

This model comes with a pre-scaling function that enables the counter to check a signal that is speedier than the most extreme time-base of the counter. The counters on the PCI 6601 National Instruments device offer 8X and 2X pre-scaling on each counter (pre-scaling can be handicapped).
Each pre-scaler is comprised of a little, basic counter that tallies to eight (or two) and moves over. This counter is particularly intended for this application and can tally flags that are speedier than the universally useful counters. The CtrnSource motion on the broadly useful counter will be the separated flag from the straightforward counter. Pre-scaling is expected for use with two counter period and frequency estimations where the estimation is made on a ceaseless, tedious signal. The pre-scaling counter cannot be perused, so the user cannot decide what number of edges have happened since the past move over. The user can utilize pre-scaling for tallying edges if it is adequate to have a mistake of up to seven when utilizing 8X pre-scaling or one when utilizing 2X pre-scaling. The PCI 6601 is equipped with a 68-pin male SCSI-II type I/O connector.

The Counter/Timer device can be calibrated using the traditional NI-DAQ 7.4.4 which is compatible with software packages or application development environments (ADEs) such as LabVIEW, LabWindows/CVI, Microsoft Visual C++, Microsoft Visual Basic, and Borland C++.

The NI device measures 6.9 x 3.9 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0 °C to 55 °C and 20 °C to 70 °C.

PCI-6601 Mature Status has been announced by National Instruments, but will be available for purchase and repairs by Apex Waves.

The PCI-6601 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the PCI-6601 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the PCI-6601 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the PCI-6601!
