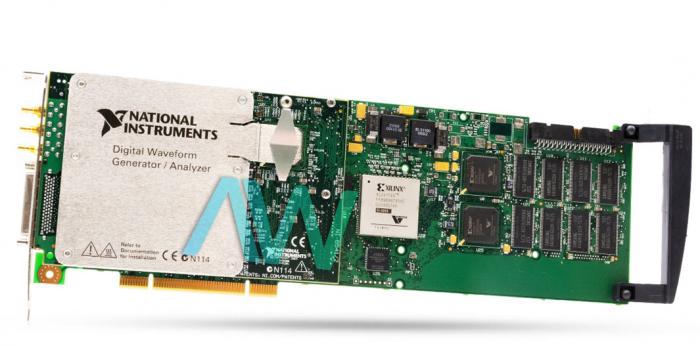

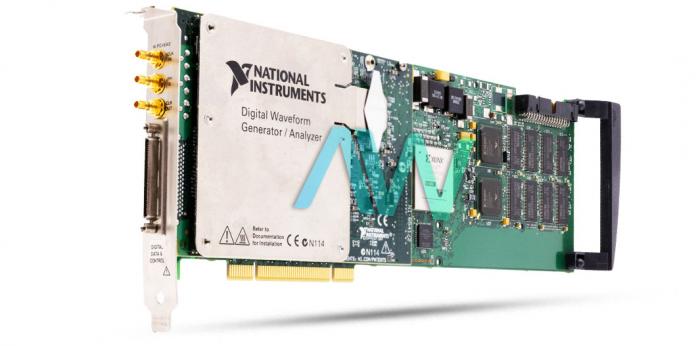

National Instruments PCI-6542 Digital Waveform Device

The PCI‑6542 (Part Numbers: 778989-02 and 778989-03) is a Digital Waveform Device. Try not to open the module to temperatures or dampness past the appraised maximums. Keep the module free of residue by cleaning with compacted air as it were. Try not to clean the module with any solvents or fluids.

The NI Script Editor is incorporated on the NI-HSDIO DVD and is introduced when the user introduces the driver. The NI Script Editor gives a natural interface to enable users to create connecting and circling waveform age tasks. The NI Script Editor Help contains more data about the NI Script Editor. NI prescribes utilizing the NI CB-2162 single-finished advanced I/O assistant to get to the signals on the 68-stick DDC connector and to end the DIO channels. The NI CB-2162 also gives a stage to circuit prototyping and DUT testing. The NI CB-2162 is particularly intended for use with single-finished NI advanced waveform generator/analyzers.

NI additionally offers the NI SMB-2163 breakout box for National Instruments single-finished computerized waveform generator/analyzers, such as the NI PCI-6542. The NI SMB-2163 offers coaxial SMB connectors for each channel on the DDC connector, giving a simple method to interface with different gadgets for testing and troubleshooting. This link offers availability like that found on a normal logic analyzer, so it can be utilized in logic analyzer-type applications. Not at all like a typical logic analyzer, in any case, this link takes into consideration concurrent example generation and obtaining with the goal that users can utilize it in jolt/reaction applications too.
