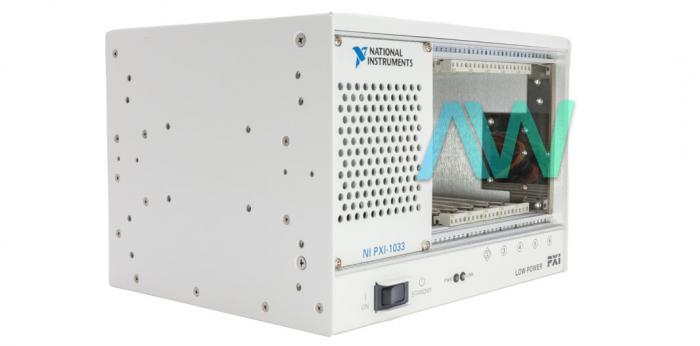

National Instruments PXI-1033 PXI Chassis

The NI PXI-1033 (Part Number: 779760-01) is a low-cost 5 slot PXI Chassis from National Instruments, which is created for remote control applications. The PXI-1033 is a host PCI Express board for desktops. This model offers services as a host express card for laptops and a cable, as well as enhanced usability in a wide range of applications. The NI PXI-1033 Chassis accepts 3U PXI and Compact PCI (PICMG 2.0 R 3.0) modules. This PXI Chassis can have a carrying handle added and/or it can be rack mounted. The device is AC powered, and has a slot cooling capacity of 25 W.

The National Instruments PXI-1033 Chassis has a built-in MXI-Express controller, with the capability to offer a transparent, remote link with up to 110 MB per second throughput. The NI PXI-1033 meets the cooling and power requirements of the automotive, automated test, and electronics industries. The PXI 1033 comes with five peripheral slots for I/O modules, a compact design, universal AC input, and quiet operation. These features make the PXI-1033 an ideal option for desktop ATE systems. The PXI-1033 economical cost help reduce the PXI setup price. The device operates using the MXI-Express kit which is contained on the PXI platform software, and can be found on NI driver software products. It can be configured using the Measurement & Automation Explorer (MAX) tool.

The NI PXI-1033 Chassis also offers an AUTO/HIGH fan-speed selector. The HIGH fan setting helps offer more cooling. The PXI-1033 AUTO fan selector reduces the noise level. This AUTO selector also checks the air intake temperature and adjusts the fan speed. The NI PXI-1033 Chassis comes with a sound pressure level of 37.4 dBA for the AUTO fan setting and a sound pressure level of 51.5 dBA for the HIGH fan setting. This model also comes with a system reference clock of 10 MHZ and a built-in clock accuracy of ±25 ppm. The device has a weight of 11 lbs., and has the dimensions: 6.97 x 10.12 x 8.8 in. Additional datasheets and manuals for the PXI-1033 can be found under the "Manuals & PDFs" tab.

PXI-1033 Mature Status has been declared by National Instruments, but this PXI Chassis will still be available for purchase and repairs at Apex Waves.
