National Instruments PXIe-1062Q PXI Chassis

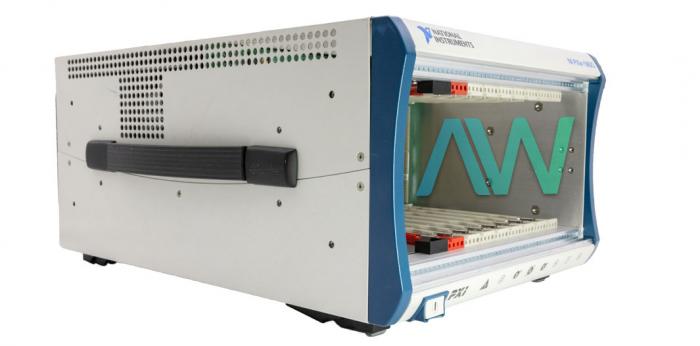

The NI PXIe-1062Q Chassis (Part Number: 779633-01, 780595-01) from National Instruments comes with a structural design, an 8-slot PXI Express backplane coupled with an enhanced, high-output power supply. The eight slots share eight trigger lines, which can be utilized to synchronize the functions of a few PXI peripheral modules. The PXIe 1062Q Chassis has one PXI Express System Timing Slot, two Hybrid Slots, and four PXI Slots. The design of this chassis is optimized for usability in a broad range of industries and applications. The PXIe 1062Q accepts CompactPCI, 3U PXI, CompactPCI Express, and PXI Express modules. The AC powered device has a maximum system bandwidth of 3 GB per second. Part number 780595-01 is the PXIe-1062Q

The PXIe 1062Q PXI Chassis has monitoring features for the temperature, power supply, and fan. This chassis is HALT tested for improved dependability and has a power supply shuttle which can be swapped while in the field. Back and front rack-mount kits can be purchased for the PXIe 1062Q, as well as slot blockers for increased cooling, EMC filler panels, and a replacement power supply shuttle.

The device is run using the PXI Platform Services 2.0 software media. The PXI Express system can be configured using the Measurement & Automation Explorer (MAX) tool.

The NI PXIe 1062Q features a maximum 1 GB per second dedicated bandwidth (single direction) PXI Express slot and can provide up to 353.9 W of power for 0°C to 55 °C. To meet XI Express cooling requirements, this model features 30 Watt per slot cooling. This chassis is designed to operate quietly, since it can work at 43.6 dBA. This model also comes with a fan for optimized acoustic emissions and cooling. To provide the user with more flexibility, there is a fan speed selector switch available. The PXIe-1062Q National Instruments complies with CompactPCI and PXI specifications as well.

The NI PXIe-1062Q Chassis provides Switchless CLK10 routing and Rear CLK10 I/O connectors. In addition, this chassis has 10 MHz REF IN / OUT BNCs and voltage monitoring, along with a remote inhibit connector. It weighs 19.4 lbs., and measures 6.97 x 10.68 x 15.61 in. in physical dimensions.
