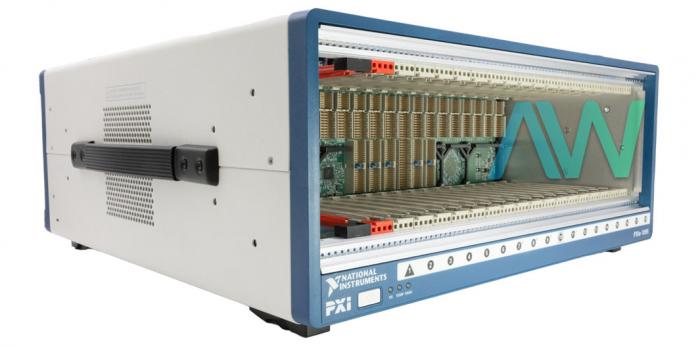

National Instruments PXIe-1095 PXI Chassis

The PXIe-1095 (Part Numbers: 783882-01, 785971-01) is a high-quality device from National Instruments. It can dedicatedly dissipate 58 W of power. It comes with a high-bandwidth backplane. Part number 785971-01 refers to the version of the PXIe-1095 that comes with a timing and synchronication option. The chassis implements an advanced cooling mechanism separately for all eighteen slots. This feature enables the NI PXIe-1095 Chassis to meet measurement requirements at the industrial level. The product also incorporates the capability to reduce the fan noise and incorporates two power supplies of 1200 Watt. These are redundant and operate in hot-swappable mode. It enables NI PXIe-1095 Chassis to achieve high reliability for various testing applications.

The NI PXIe-1095 Chassis comes with PCI Express technology for the Gen 3 bus. This model offers a high bandwidth of 24 GB per seconds, which makes it highly suitable for applications involving peer-to-peer or peer-to-disk data transfer. The instrument comes with a built-in mechanism to offer two distinct cooling profiles. The user can select or modify it using the software. It enhances cooling capabilities and increases the life of the instrument, while allowing the user to carry out an optional upgrade. This upgrade enhances timing and synchronization capabilities and improves the clock accuracy of the equipment. It also enables an external clock, along with the mechanism for trigger routing.

The NI PXIe-1095 Chassis enables the user to put PXI Express modules in any of the slots. This model comes with the built-in support to accommodate PXI hybrid-compatible modules for up to five slots. The instrument offers amazing performance efficiency of 85%. It also incorporates a built-in protection mechanism for overcurrent. The National Instruments PXIe-1095 comes with the complete software suite, which enables the mechanism for monitoring system and control operating parameters. These parameters may include temperature control, fan speed control, and other advanced options. The accessories available for the PXIe-1095 include the: fan replacement assembly kit (part number: 786324-01), EMC filler panel (part number: 786342-01), replacement 1200W power supply (part number: 786300-01) and more.
