National Instruments 779887-00 Embedded PXI Controller

Part number 779887-00 from National Instruments is the part number for the PXI-8106 Embedded PXI Controller with a Localized OS and Extended Temperature capabilities. A local OS such as the one used with the 779887-00 makes it easier for the controller to integrate with local infrastructure, enhancing both the efficiency and accessibility. Featuring an Intel Core 2 Duo processor T7400 CPU and a 30 GB PATA hard drive, the controller has plenty of storage and memory to accommodate large testing setups.

The extended temperature abilities of the 779887-00 expands the operating temperature from the normal range of 5 to 50 °C (41 to 122 °F) to an increased range of 0 to 55 °C (5 °F to 131 °F). This extended range is tested according to the standards of IEC-60068-2-1 and IEC-60068-2-2, ensuring excellent performance. The storage temperature of the 779887-00 is also extended, increasing from a range of  –20 to 65 °C (-4 to 149 °F) to a range of -40 to 70 °C (-40 to 158 °F). As a result, this controller provides enhanced protection against temperature extremes in industrial environments.

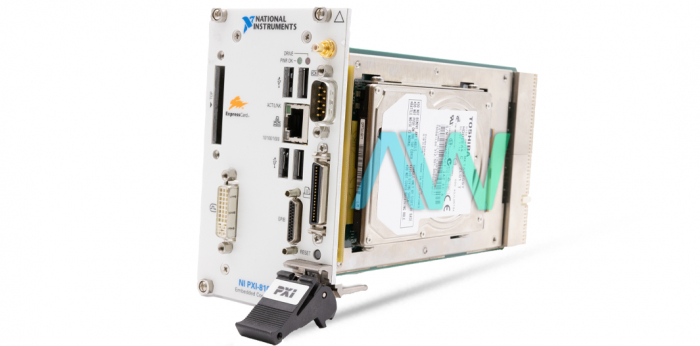

The clock speed of the controller offers a solid performance of 2.16 GHz. In terms of memory, the device utilizes a Dual-Channel DDR2 RAM, which boasts a standard capacity of 512 MB that is capable of going up to 2 GB. With multiple connector types featured prominently on the front panel of the controller, the 779887-00 effortlessly connects in different configurations.

Built to withstand a variety of environmental factors, the 779887-00 operates at altitudes up to 2,000m. It has a pollution degree of 2, and has a typical weight of 0.94 Kg (2.1 lb).
