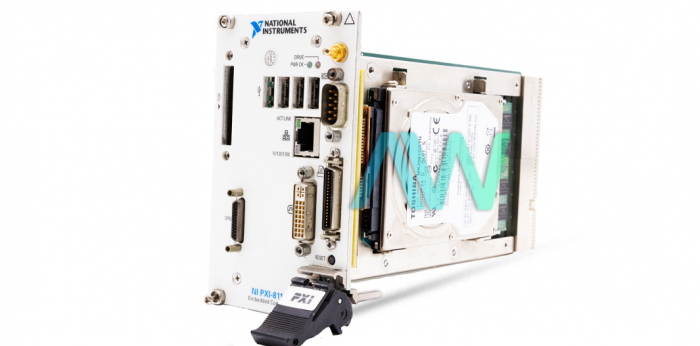

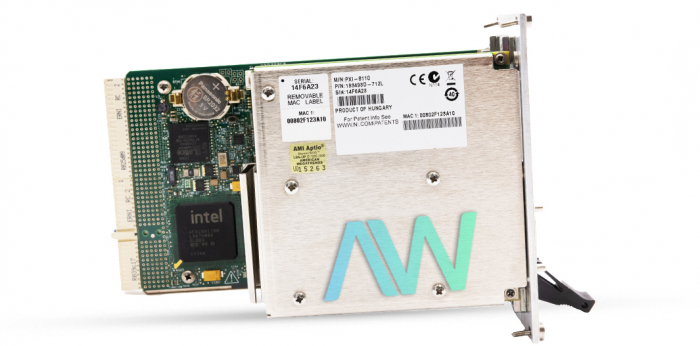

National Instruments 780690-00 PXI Embedded Controller

National Instruments 780690-00 is the part number for the PXI-8110 Embedded Controller that has Localized OS. This specific operating system provides a custom experience for the user by adapting to the specific needs and preferences of a region. Featuring a powerful Intel 2 Quad processor with 2.26 GHz, the controller is able to process multiple tasks simultaneously.

The 780690-00 includes an on-die L2 cache that shares 6 MB between cores “0” and “1” and another 6 MB between cores “2” and “3”, combining for a total of 12 MB. With a single-channel DDR2 RAM, the 780690-00 boasts a standard memory of 2 GB, with a maximum capacity that is doubled to 4 GB.

One of the standout features of the 780690-00 is it’s range of connectivity options. Depending on the I/O interface, the controller has a GPIB connector, a Serial Port, a Parallel Port, and 4 Hi-Speed USB Ports. It also boasts an ExpressCard/34 Slot, and a PXI Trigger Bus Input/Output. By using a 10/100/1000 BaseTX Ethernet connection, the 780690-00 has enhanced networking capabilities.

The PXI 3U-size module of the 780690-00 adheres fully to the PXI specification with an operating ambient temperature range of 5 to 50 °C (41 to 122 °F). When the embedded controller is not in use and needs to be stored, it can withstand an even wider temperature range of -40 to 65 °C (-40 to 149 °F). It measures 8.1 cm × 13 cm × 21.6 cm (3.2 in. × 5.1 in. × 8.5 in.), and weighs an easily handled 0.914 kg (2.02 lb).
