PXI-8115 Technical Specifications:
| Manufacturer | National Instruments |
|---|---|
| Model | PXI-8115 |
| Type | Dual-Core Embedded Controller |
| Repair Evaluation | $150 |
PXI-8115
Home PXI-8115
| Part Number | PXI-8115 |
| Manufacturer/Brand | National Instruments |
| Description | PXI-8115, 2 GB Standard; 8 GB Max, 2.5 GHz Dual-Core Embedded Controller |
Speak to a sales representative for pricing & lead time:
Phone:1-919-809-5227
• Quick Quotes: Receive Price & Availability Today!
• Warranty: 1 Year Warranty Covered by Apex Waves
• Calibration: Ask About Our Tiered Calibration Levels
• Option & Modules: Confirm Your Requirements or Versions
• Repair: Cost & Lead Time Available Upon Request for Service
- Description
- Technical Specifications
- FAQ

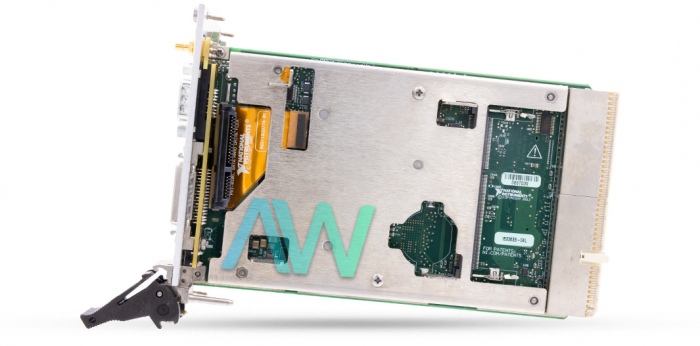

National Instruments PXI-8115 Dual-Core Embedded Controller
The PXI-8115 (Part numbers: 781862-00, 781862-00, 781860-33, 781862-33, 781860-04, 781862-04, 781860-01, and 781862-01) is a Dual-Core Embedded Controller for PXI manufactured by National Instruments. This model has regular I/O characteristics and can be used in conjunction with a chassis compatible with PXI, such as the NI PXI-1042. The I/O on every module has two DP video, a parallel port, six high-speed USB 2.0 ports, a reset button, two Gigabit Ethernet links, 1 RS-232 serial port, and more. The National Instruments PXI-8115 is a 3U-size, with 1333 MHz memory controller, and one channel DDR3.
The PXI-8115 is run using the NI-DAQmx driver software which is compatible with software packages such as LabVIEW, Measurement Studio, LabWindows/CVI applications, or NI-VISA. LabVIEW is simple to utilize to obtain information from many types of instruments. The user can link a monitor to their PC to show startup messages like the MAC address and IP address. However, the other computer must have LabVIEW, LabVIEW RT, or any other drivers they would like installed. An important fact to note is that the user can record the PXI-8115 Dual-Core Embedded Controller’s MAC address to identify the model.
The National Instruments PXI-8115 has the capability to alter the amount of RAM installed by upgrading the SO-DIMM. The options for the upgraded SO-DIMM include: 2 GB, 256 MB x 64; 4 GB, 512 MB x 64; and 8 GB, 1024 MB x 64. The PXI-8115 Dual-Core Embedded Controller can also be operated with ExpressCard modules. The ExpressCard modules can even be inserted while the PXI-8115 is powered on. The cards have the unique feature of being created with the capability to halt improper insertion. The NI device has 8 external connectors with some of them being a 9-pin DSUB, 2 RJ45s a 36-pin champ, a 25-pin Micro D among others. The device weighs 1.32 kg, and measures 3.2 x 5.1 x 8.5 in. in physical dimensions. It has a recommended base operating temperature range of 5 to 50 °C, and an extended temperature range of 0 to 55 °C.
PXI-8115 Maintenance Status has been announced by National Instruments, but the controller will still be available for purchase and repairs by Apex Waves.
| Model | PXI-8115 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 781862-00, 781862-00, 781860-33, 781862-33, 781860-04, 781862-04, 781860-01, 781862-01 |
| Series | PXI Controllers |
| Type | Dual-Core Embedded Controller |
| CPU | Intel® Core™ i5 2510E (2.50 GHz dual core processor) |
| RAM | 2 GB Standard; 8 GB Maximum |
| Board Size | PXI 3U-size module |
| Warranty | Three Year Warranty |
| PXI-8115 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments PXI-8115 Frequently Asked Questions
Question: What is the difference between all of the part numbers of the PXI-8115?
Answer: Part number 781862-00 has no OS, part number 781862-00 also has no OS but uses an external temp, part number 781860-33 uses real-time embedded software, part number 781862-33 also uses real-time embedded software but with an external temp, Part number 781860-04 is made for use with Windows 7, and part number 781862-04 is also made for Windows 7 and has external temp. Part number 781860-01 is made for use with Windows XP FES, while part number 781862-01 is made for use with Windows XP FES and has an external temp.
Question: How many USB ports does the PXI-8115 have?
Answer: The PXI-8115 has six Hi-Speed USB ports.
Question: Should the chassis be plugged in before installing the NI PXI-8115?
Answer: Yes, you need to plug in the chassis before installing the NI PXI-8115. The power cord grounds the chassis and protects it from electrical damage. Make sure the power switch is turned off.
Question: Why can’t I see the video on the NI PXI 8115?
Answer: If you can’t see the video on the NI PXI 8115, it usually means the video card output is set past the limits of the monitor. You will need to boot Windows in Safe Mode and reset the video driver to lower settings.
Question: Does the PXI-8115 have a trigger bus input/output?
Answer: Yes, the PXI-8115 is equipped with both trigger bus input and output.
