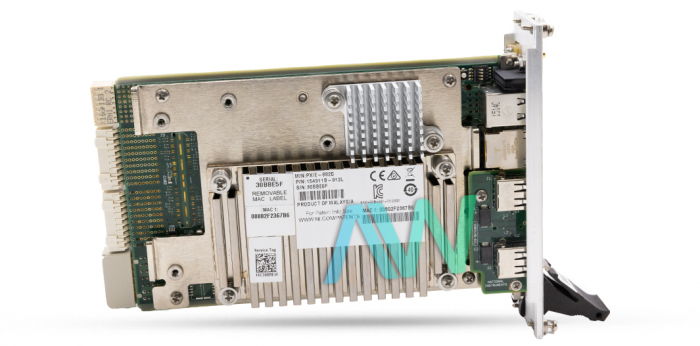

National Instruments PXIe-8820 PXI Controller

The 2.2 GHz Dual-Core PXIe-8820 (Part Numbers: PXIe-8820 RT, 782919-04, and 782919-33) PXI Controller is a member of the RT Series by National Instruments. This PXI Controller gives an adaptable and tough platform for users. With this model, users can build up their NI LabVIEW application with the LabVIEW Real-Time Module in the Windows working framework and download the program to the PXI Controller progressively by means of Ethernet. LabVIEW Real-Time applications running on PXI frameworks accomplish millisecond cycle rates with just 3 µs at 4 µs of framework jitter. These ongoing estimation and control frameworks exploit Intel processors joined with the progressed PXI I/O synchronization, enactment, and synchronization benefits.

To enhance the workability of the NI PXIe-8820, users can rapidly get to diagnostics in ROM for the hard drive and memory without the requirement for outside apparatuses. When running these diagnostics, the aftereffects of the investigation can decide if the hard plate or memory should be supplanted. The outline of the NI PXIe 8820 permits the fast field substitution of basic parts, such as hard circle and memory. To encourage the way toward acquiring substitution parts, users can purchase hard drive and memory updates with the NI PXIe-8820 RT. The mix of this and the analysis in ROM fundamentally enhances the functionality of the PXIe-8820 RT.

This Controller offers an Intel Celeron 1020E double core with 2.2 GHz processor, up to 40 percent more execution than the PXI-8102 RT, framework data transfer capacity of up to 1 GB/s, an opening width of 250 MB/s (four connections x1 PCI Express), and 2 GB 1333 MHz DDR3L standard RAM.

PXIe-8820 Mature Status has been announced by National Instruments, but the Controller will still be available for purchase and repairs by Apex Waves.
