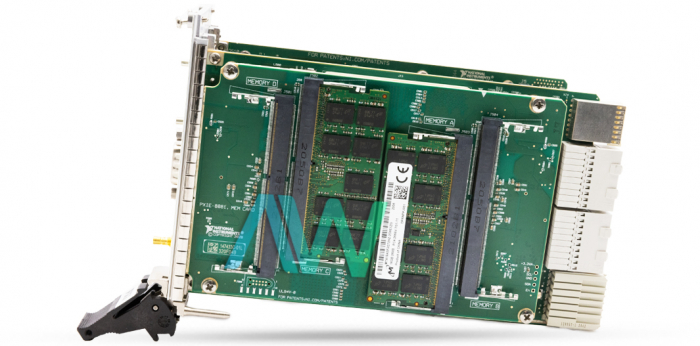

National Instruments PXIe-8881 PXI Controller

The PXIe-8881 PXI Controller (Part Numbers: 787807-01, 786636-01, 787805-01, 787805-33, 787806-01)  is a PXI Express or Compact compatible system controller boasting high-performance, integration of standard input/output features, and user configurable settings.

With the PXIe-8881 PXI Controller, the PXI Expressor Compatible chassis configurations produce a completely PC-compatible computer. The PXIe-8881 PXI Controller offers the following features: Intel Xeon Processor (comes in 4-, 8-, or 18-core options), integrated hard drive with 512 GB of memory, standard and peripheral I/O, 24 GB/s maximum controller bandwidth, 500 gigabyte M.2 NVMe solid state drive. The PXIe-8881 PXI Controller’s standard I/O possesses the following features: DisplayPort, RS-232 serial port, high speed USB ports, multiple ethernet ports, Thunderbolt ports, GPIB, SMB trigger connectors, and device reset button. The PXIe-8881 embedded controller operates Windows 10 applications and interacts with PCIe instruments. Depending upon the type of PXIe-8881 PXI Controller obtained (4, 8, or 18 core), the base frequency, max turbo frequency, cache, and Quad Channel DD4-2666 base will vary. The PXIe-8881 is sensitive to environmental conditions (altitude, ambient air temperature, relative humidity, operating shock, and vibration both during times of operation and times of storage.

The PXIe-8881 PXI Controller can be configured by users using the BIOS setup program. BIOS is a hardware to operating system software interface that enables configuration and testing of hardware upon system booting. The PXIe-8881 controller features can be configured, enabled, and altered through the BIOS setup program. However, the PXIe-8881 PXI Controller comes with versatile control features that will be satisfactory for the majority of users. Thus, the BIO setup environment may not be required for all applications.

The PXIe-8881 can be used for the following applications: processor-intensive RF, modular instrumentation, and data acquisition. PXIe-8881 PXI Controller is a modular PC within the PXI Express or Compact 3U form factor that offers a high-performance, compact embedded computer solution for PXI, CompactPCI, and PXI Express systems.
