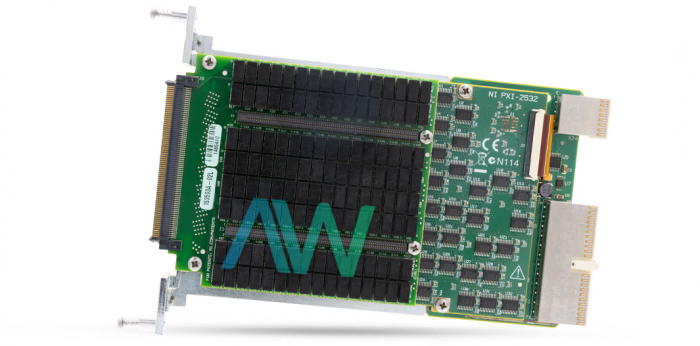

National Instruments PXI-2532B PXI Matrix Switch Module

The NI PXI-2532B (Part Number: 782383-01) is a 512-crosspoint, rapid Matrix Switch Module. With the biggest framework measure accessible in a 3U PXI slot, the NI PXI-2532B offers ultra-high-density switch arrangements in the PXI platform. With the capacity to make up to a 4x2176 or 8x1088 one-wire matrix in a single frame and considerably bigger arrangements with multi-chassis arrangements, the National Instruments PXI-2532B is perfect for high-channel-count automated test setups. Highlighting compact reed relays with changing rates as fast as 2,000 cycles per second and the capacity to synchronize with instruments, the NI PXI 2532B gives the most extreme throughput in a test framework for signals up to 100 VDC/100 Vp or 0.5 A. The device has a channel-to-channel maximum switching voltage of 100 V, and a channel-to-ground maximum switching voltage of 100V, CAT 1. It has a maximum switching power of 10 W per channel.

If the user needs a matrix estimate bigger than one of the standard NI PXI 2532B designs, it is possible to use the NI R1616 section extension link to interconnect the columns of two PXI 2532B modules via a TB-264xB terminal square. For example, the user can make a 4x256 one-wire matrix with two NI PXI 2532B modules, two TB-2640B terminal blocks, and one R1616 segment development link interconnected between the TB-2640B terminal blocks.

The PXI instrument has a simultaneous drive limit of 40 relays, a mechanical relay life of 1 × 109 cycles, an electrical relay life ranging from 1 × 107 cycles through 5 × 106 cycles, to 5 × 105 cycles. The device is equipped with 2 Samtec ERM8-EM series I/O connectors.
The PXI-2532B Switch Module is perfect for high-channel-count applications that need to associate estimation or signal generation instruments to different test points on gadgets or units under test (DUTs or UUTs). The PXI 2532B PXI Matrix Switch Module has more than 10 matrix topology combinations available, since it has the capability to be used with a variety of terminal block accessories, making it an extremely diverse module. The device weighs 1 lb, and has the dimensions: 7.3 x 0.8 x 5.1 in.
