National Instruments PXI-2595 RF Multiplexer Switch Module

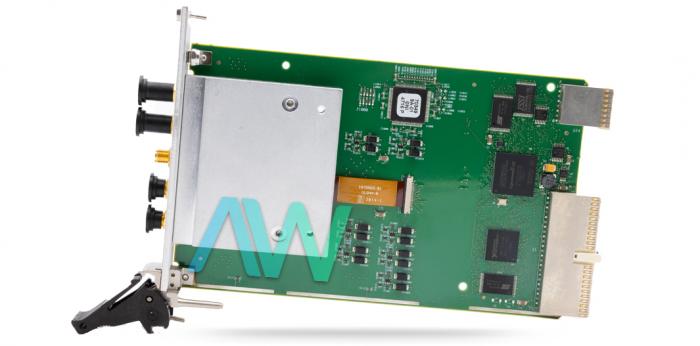

The National Instruments PXI-2595 (Part number: 778572-95) RF Multiplexer Switch Module offers a high density, quad 4x1 multiplexing configuration and is equipped for switching signals from DC to 5 GHz. The trademark impedance of this module is 50 Ω. The PXI-2595 count relay has closures on every one of its RF relays. Relay counts are increased each time a relay is actuated. The counts, stored on board the module, are retrievable automatically and can be utilized for predictive maintenance to lessen unforeseen framework downtime.

Every single National Instruments PXI-2595 RF Multiplexer Switch Module is dispatched with NI-SWITCH, an IVI-compliant driver offering complete usefulness for all switch modules. For extra help with arranging, programming, and overseeing higher-channel-count switching frameworks, NI Switch Executive programming offers a simple-to-utilize smart switch management and visual directing environment. The user can employ the NI-SWITCH soft front board for simple relay tasks or debugging switch code/execution.

The NI PXI-2595 module has an adaptable output list architecture that can lessen general data acquisition and test time. A scan list delivers the speediest output conceivable by giving a hardware-timed solution. The user can arrange the module to process the scan list once or to consistently loop through the scan list. Commands in the scan list can open or close relays, wait for an outside trigger, and produce a scanner advanced trigger. The NI device has a maximum switching voltage, maximum switching current, maximum carry current, and maximum RF power of 30 V, 0.5 A, 0.5 A, and 10 A respectively.

This model works with the following software packages:

• Windows 2000/NT/XP

• Linux® Recommended Software

• NI Switch Executive

• LabVIEW

• LabVIEW Real-Time Module

• LabWindows/CVI

• Measurement Studio Other Compatible Software

• Visual Basic

• C/C++Driver/Services Software (included)

• NI-SWITCH

• NI-DAQmx driver software

The NI device weighs 8.8 oz, and measures 8.5 x 0.8 x 5.1 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, a storage temperature range of -20 °C to 70 °C, a non-condensing humidity range of 5% to 85% RH, operating and non-operating random vibrations of 0.3 grms and 2.4 grms respectively – all at a frequency range of 5 Hz to 500 Hz.

Apex Waves will continue to Buy, Sell, and Repair EOL NI Hardware in perpetuity. While the PXI-2595 will enter the NI Maintenance phase on June 30, 2023, it will remain available with Apex Waves. Request your quote today!
