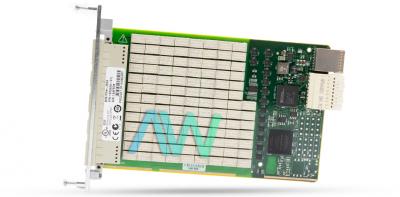

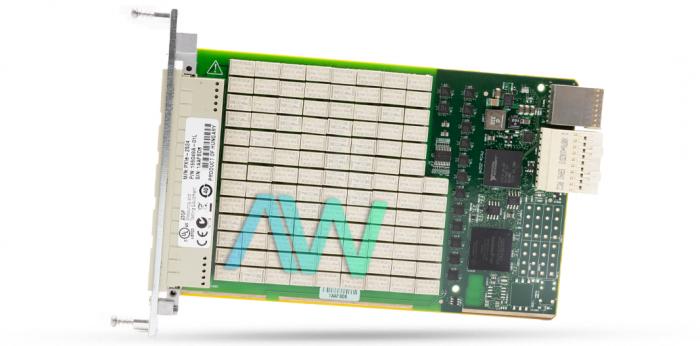

National Instruments PXIe-2524 PXI Multiplexer Switch Module

The PXIe-2524 (Part Number: 780587-24) is a high-density Multiplexer Switch Module from National Instruments with the capability to offer an input switching current of 2 amperes. The maximum switching power of the NI PXIe-2524 Switch Module is 60 W or 62.5 VA. It has applications in automated test systems for routing the signals. The instrument also offers various 1-wire multiplexer configurations, such as 16 bank 8x1, octal 16x1, quad 32x1, dual 64x1, and 128x1. These configuration schemes play a pivotal role in switching operations of the equipment. The PXIe-2524 Multiplexer Switch Module makes use of electromechanical relays for these operations.

The NI PXIe-2524 has incredible RF performance characteristics. It offers the bandwidth of less than 10 MHz. The DC path resistance of the equipment is less than 0.8 Ohms. The value for thermal EMF of the instrument is less than 10 micro-volts. The typical relay operation time of the instrument is one millisecond, with a maximum value of 3.2 milliseconds. The expected life cycle of the mechanical relays is 1 x 10⁸ cycles. The front panel of the NI PXIe-2524 Switch Module incorporates various types of connectors, which includes 160 DIN 41612, 160 positions, and male connector.

The NI PXIe 2524 module enables users to perform measurements quickly. The user can get highly accurate results. The module is portable and weighs around 241 grams. It has the dimensions of 21.6 x 2 x 13 cm. The power requirement for the PXI Express module is 24 watts at 12 volts and 3.4 W at 3.3 volts.
