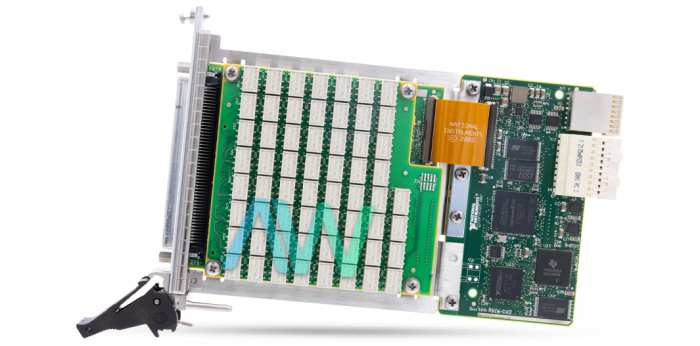

National Instruments PXIe-2575 PXI Multiplexer Switch Module

The PXIe-2575 (Part Number: 780587-75) is a high-performance Multiplexer Switch Module from National Instruments. This module offers different topologies to operate in varying modes, including 1-Wire, 196 channel and 2-Wire, 98 channel configuration modes. The PXIe-2575 Multiplexer Switch Module offers extraordinary dynamic characteristics. The typical time for relay operation is 1 millisecond, with a maximum value of 3.4 milliseconds. These relays are efficient and electromechanical relays. This module also comes with the capability to route numerous signals to various devices at the same time, which enables the NI PXIe-2575 to fulfill various testing requirements with ease.

The NI PXIe 2575 Multiplexer Switch Module offers amazing input characteristics. The channel to channel voltage offered is up to 100 volts. The maximum per channel switching power of the equipment is 60 Watts or 62.5 VA. It has the DC isolation resistance value of 1 Giga-ohms, which is measured between channel and COM terminals. The maximum value of the switching current is one ampere. The bandwidth for the 1-Wire mode of operation is greater than 20 MegaHertz, whereas the value for the 2-Wire mode is greater than 8 MegaHertz.

The typical value of differential thermal EMF for the PXIe-2575 is 3 microvolts. It has a maximum value less than twelve microvolt. The NI PXIe-2575 Multiplexer Switch Module offers the high scanning speed capability of 140 cycles per second. The instrument also features programmable software options and incorporates a relay counting feature. This module weighs around 231 grams.
