PXI-4110 Technical Specifications:
| Manufacturer | National Instruments |
|---|---|
| Model | PXI-4110 |
| Part Numbers | 779647-10 and 779647-11 |
| Type | PXI Programmable Power Supply |
| Repair Evaluation | $150 |
PXI-4110
Home PXI-4110
| Part Number | PXI-4110 |
| Manufacturer/Brand | National Instruments |
| Description | NI PXI-4110, 3 Channel, 20 V, 300 S/s Sample Rate, PXI Programmable Power Supply |
Speak to a sales representative for pricing & lead time:
Phone:1-919-809-5227
• Quick Quotes: Receive Price & Availability Today!
• Warranty: 1 Year Warranty Covered by Apex Waves
• Calibration: Ask About Our Tiered Calibration Levels
• Option & Modules: Confirm Your Requirements or Versions
• Repair: Cost & Lead Time Available Upon Request for Service
- Description
- Technical Specifications
- FAQ
National Instruments PXI-4110 PXI Programmable Power Supply

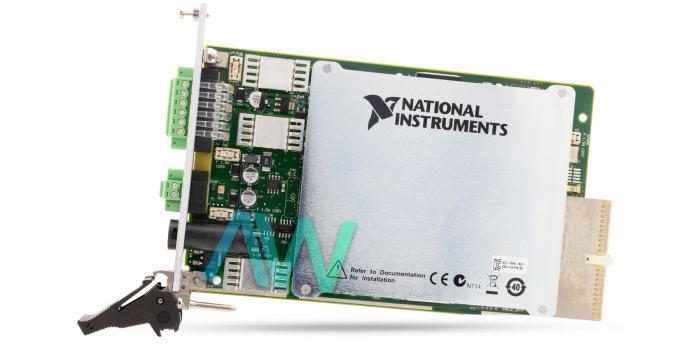

The PXI-4110 (Part Numbers: 779647-10 and 779647-11) is a programmable DC Power Supply from National Instruments. This single-quadrant power supply is equipped with 3 channels, making it an excellent choice for validating designs and assembling test applications. The setting point and the reading for the voltage of the NI PXI-4110 is user-programmable, offering a customizable performance. The power supply is capable of sourcing both voltage and current from each of it’s three outputs- these channels can be consolidated by the user to achieve a higher voltage or current. The difference between the two part numbers of the programmable power supply is that part number 779647-10 is the standard version of the device, while part number 779647-11 comes with NI APS-4100 Auxiliary Power.
The three output channels of the NI PXI-4110 are labeled as Channel 0, Channel 1, and Channel 2. As a voltage source, these channels each have a distinct range and resolution. Channel 0 has a range of 6 V and a resolution of 0.12 mV, while Channel 1 has a range of 20 V and a resolution of 0.40 mV. Channel 2 has the same resolution of 0.40 mV, but it’s range is -20 V. As a current source, Channel 0 has a range of 1 A and a resolution of 0.02 mA. Channels 1 and 2 have a range of either 20 mA or 1 A with resolutions of 0.40 μA or 0.02 mA respectively. The PXI-4110 has a total output power of 9 W or 46 W.
The PXI-4110 power supply offers protections against overvoltage, safeguarding the device against potential damages. For the output channels, the overvoltage protection tolerate up to 14 VDC over the rated output. For the auxiliary power input, the device protects against overvoltage with a shut-off feature for any voltage over 15.5 VDC. The NI PXI-4110 features 2 I/O connectors: a 6-position MINI-COMBICON connector for output and a 2-position MINI-COMBICON connector for auxiliary input.
During operation, the PXI-4110 should be kept within an operating temperature range of 0 °C to 55 °C. The device measures 2.0 cm × 13.0 cm × 21.6 cm (0.8 in. × 5.1 in. × 8.5 in.) in dimensions and typically weighs 323 g.
| Model | PXI-4110 |
|---|---|
| Part Numbers | 779647-10 and 779647-11 |
| Manufacturer | National Instruments |
| HTS Code | 8504406001 |
| Type | PXI Programmable Power Supply |
| Channels | 3 |
| Total Output Power | 9 W or 46 W |
| Analog Output Voltage Range | -20 V to 20 V |
| Dimension | 8.5 x 5.1 x 0.8 in. |
| Weight | 323 g. |
| Warranty | Three Year Warranty |
| PXI-4110 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments PXI-4110 Frequently Asked Questions
Question: What are the differences between the two part numbers for the National Instruments NI PXI-4110?
Answer: Part number 779647-10 has 9 W total output power and does not include auxiliary power. Part number 779647-11 has 46 W total output power and includes auxiliary power.
Question: How long is the PXI 4110 calibration interval?
Answer: The PXI-4110 calibration interval is one year.
Question: What type is the PXI-4110 connector?
Answer: The PXI-4110 connector is MINI-COMBICON, 3.81 mm (6 position), nominal for the output channels and MINI-COMBICON, 3.5 mm (2 position), nominal for the auxiliary power input.
Question: What is the PXI-4110 driver software called?
Answer: The PXI-4110 driver software is called NI-DCPower Instrument Driver.
Question: What is the PXI-4110 Power Supply source?
Answer: The PXI-4110 Power Supply source is externally powered, internally powered.
Question: Should I use a breakout box for voltage load regulation of the PXI-4110?
Answer: Instead of a using a breakout box, the load can be connected at the connector using the connector shell kit or the screw terminals.
Question: What is the current limit for the PXI-4110?
Answer: The PXI-4110 has a current limit that is set to 1A for auxiliary power and 100 mA for internal power.
