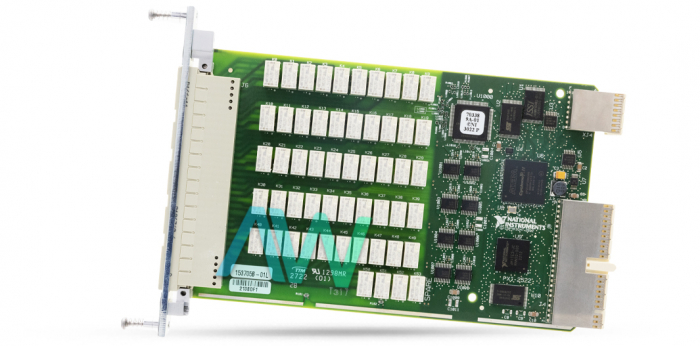

National Instruments PXI-2522 PXI Relay Module

The NI PXI-2522 General-Purpose Switch Module (Part Number: 778572-22) utilizes the inherent timing and synchronization capacities of the PXI platform to communicate with different instruments. The user can store a list of switch associations in memory on board the switch module and afterward utilize the incorporated equipment output and initiation motor to advance the switch sequence and communicate rapidly with any PXI instrument that can send and get advanced triggers, including a DMM or oscilloscope. This advanced strategy of change takes out the software overload and decreases bus latency related with conventional software-controlled switching tasks for a quicker trial with more repeatable times.

The NI PXI-2522 software incorporates an intelligent front board for complete ready-to-utilize functionality. This delicate intuitive front board enables the user to arrange the topology of the switch and change the switch associations with a simple click. Likewise, the user can utilize the Debug Driver session mode to screen and troubleshoot the switch amid automated estimation. For instance, the user can control which signal paths are dynamic, which individual relays are open/shut, and how frequently each relay has been utilized.

This model offers 3 independent SPDT relays, 2 A switching/2 A carry, 100 V maximum voltage, fully programmable software, onboard relay count tracking, multiple termination options for DIN160 connector, and can configure the complete PXI System and includes view support resources.

If you are interested in this model and you want to learn more about its options, special features, and specifications, you can read its manual, which is available on the ApexWaves.com website.
