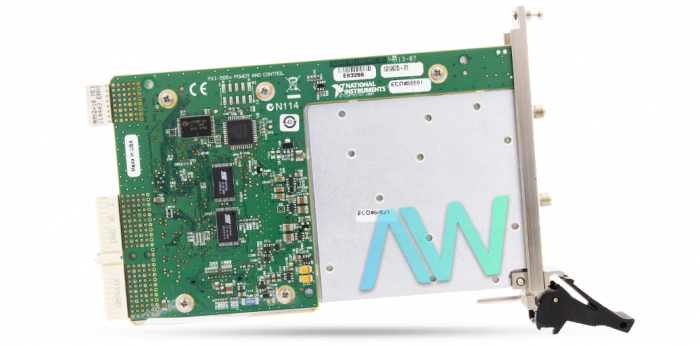

National Instruments PXI-5650 PXI RF Analog Signal Generator

The NI PXI-5650 (Part Number: 779670-00) is a 1.3 GHz Analog Signal Generator that has wave generation capacities that proceed with FM, 2-FSK, or OOK modulation. It utilizes direct digital synthesis (DDS) for high resolution frequency jumps or continuous phase sweeps for equipment or gadget characterization applications. The PXI-5650 is perfect for synchronization of non-standard examining rates, such as WCDMA signals in baseband or intermediate frequency (IF). With these adaptable signal generators, the user can perform analog and digital modulation through the inward DDS circuit, which gives frequency modulation and frequency offset for applications, such as bit error ratio tests, antenna tests, or even non-digital input key. The user can also perform modulation on the amplitude by utilizing on-off control.

The PXI-5650 shows how the framework control unit deals with the control signals and information exchanged between the circuit squares. The framework control unit contains the temperature screen and adjustment components. This model offers over 50 MHz. Signal generation happens inside the main synthesizer circuit. The synthesizer is phase-locked to the DDS output signal as a source of reference. The device has a RF generator frequency range of 500 kHz to 1.3 GHz, and has a maximum output power of 12 dBm.

The clocking circuitry included with this model contains the framework clock reference and the DDS. The framework clock is a 200 MHz voltage-controlled crystal oscillator (VCXO) that the user can program to phase-lock to an outside 10 MHz clock signal at the REF IN/OUT connector. The DDS timed by the 200 MHz reference gives signs of up to 50 MHz, with fine recurrence steps. RF motions below 50 MHz come straightforwardly from the DDS.

The NI device is run using the NI-RFSG driver software which is compatible with application development environments (ADEs) like LabVIEW or LabWindows/CVI. It has a recommended warm-up time of 30 minutes, and should be calibrated at least once a year.

The PXI-5650 signal generator weighs 14.6 oz, and measures 8.5 x 0.8 x 5.1 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, a storage temperature range of -40 °C to 70 °C, and a noncondensing humidity range of 10% to 90% and 5% to 95% respectively.

The PXI-5650 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the PXI-5650 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the PXI-5650 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the PXI-5650!
