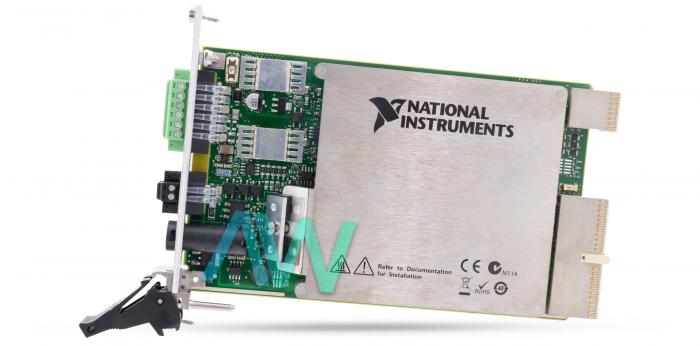

National Instruments PXI-4130 PXI Source Measure Unit

The NI PXI-4130 (Part Numbers: 779647-30 and 779647-31) is a programmable, high-control Source Measure Unit (SMU) in a single slot, 3U PXI module. It has a single detached SMU channel that offers a four-quadrant ± 20 V output that consolidates remote (4-wire) sense. This channel is fit for sourcing up to 40 W in quadrants I and III and sinking up to 10 W in quadrants II and IV. With five current giving estimation resolution down to 1 nA, this exactness source is perfect for design validation and semiconductor test applications that require automatic sourcing and sweeping and additionally high-precision estimations.

The PXI-4130 also incorporates a utility channel that can source either current or voltage with 16-bit set-point and estimation resolution. This output provides up to 6 V and 1 A, as a complementary power source to the SMU channel. Applications such as transistor characterization that requires precisely sourcing a consistent current or voltage while clearing another current or voltage can significantly profit by the diminished complexity, footprint, and cost that this module offers.

The two channels of the PXI-4130 power SMU can act as either a constant voltage source or a constant current source, with a settable consistence constrain for either mode. In addition, the user can empower remote sense on the SMU channel to augment voltage output/estimation exactness on the PXI-4130 SMU under test for high-accuracy applications.

The PXI-4310 is run using the NI-DCPower driver software which can be programmed using software like LabVIEW or LabWindows/CVI. It has a recommended warm-up time of 30 minutes and should be calibrated at least once a year.

It is possible to control the PXI-4130 either inside from the PXI backplane or remotely through a front-board associated assistant DC supply, such as the NI APS-4100. The NI device weighs 11 oz, and measures 8.5 x 5.1 x 0.8 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C, a storage temperature range of -40 °C to 70 °C, noncondensing operating and storage humidity ranges of 10% to 90% and 5% to 95% respectively, operating and non-operating random vibrations of 0.3 grms and 2.4 grms respectively–all at a frequency range of 5 to 500 Hz.

The PXI-4130 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the PXI-4130 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the PXI-4130 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the PXI-4130!
