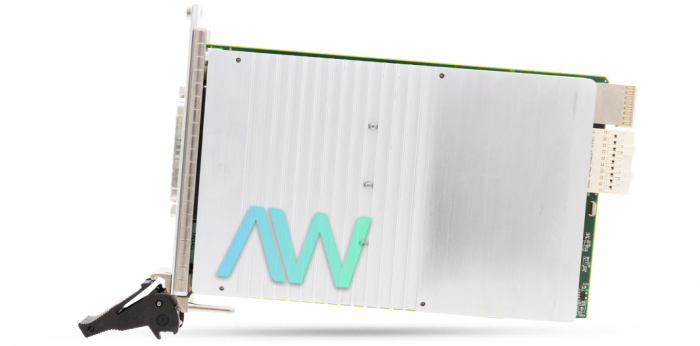

National Instruments PXIe-4144 PXI Source Measure Unit

The PXIe-4144 (Part Number: 782432-01) has a Wireless Testing System (RFIC) that incorporates the key instruments the user needs to describe control intensifiers, transceivers, IF receivers, RF fronts, modulators/demodulators, and other RFIC gadgets. The framework incorporates a vector signal analyzer (VSA) of 6.6 GHz and a generator of vector signals (VSG) of 6.6 GHz to capture or produce basic RF principles (ZigBee, WLAN, WiMAX and others); a source measurement unit (SMU) for basic DC parametric estimations (open/short, leakage tests); High-speed computerized I/O to catch or create digital baseband or control communication modes in FFICs through basic communication protocols (SPI, I2C, JTAG); and choices to include digitizers, clock sources, control meters and other RF hardware to meet the user’s needs.

The Wireless Test System (RFIC) has the instruments required for normal estimations in RFIC gadgets, such as the error vector magnitude (EVM), framework leak, recurrence balance, etcetera and to make customized modulation schemes (AM, FM, PM, ASK, FSK, MSK, GMSK, PSK, QPSK, PAM, QAM). Combined with NI LabVIEW programming, this arrangement can help the user rapidly modify their framework to perform the estimations they need to portray their remote IC.

The NI PXIe-4144 has numerous strategies for addition of motions; the techniques for single frequency and multifrequency are the most well-known. These techniques with generation of direct power waveform permit the user to gauge the impedance in the low frequency part of the spectra, up to low frequencies, of a couple of uhz. To utilize these techniques for high frequencies, amazing ADC is required.
