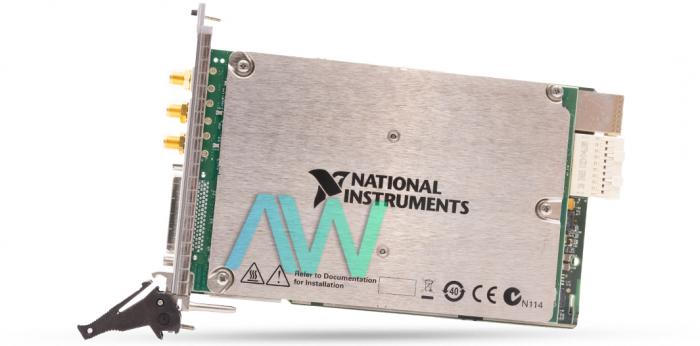

National Instruments PXIe-6544 PXI Digital Waveform Instrument

The 100 MHz, 32 Channel, 3.3 V PXIe-6544 (Part Numbers: 780992-02, 780992-03, and 196524C-02L) is a Digital Waveform Generator and Analyzer to set up interfaces with 32 pins from a single terminal. The NI PXIe-6544 can test computerized waveforms up to 100 MHz and set up interfaces with basic voltage levels from transistor to transistor logic (TTL). The PXIe-6544 additionally has advanced synchronization abilities to construct incorporated mixed signal testing frameworks and digital timing features per bank. The user can utilize the NI PXIe-6544 to create information on 32 lines (continuously or in bursts) to test the DAC at its most extreme clock rate. The user can also pair this gadget with several other NI instruments, including digitizers or source measure units (SMUs), to describe the DAC for different tests at higher rates.

Streaming rates of 660 MB/s to host PC memory and 400 MB/s from host PC memory makes the PXIe-6544 perfect for applications requiring high streaming rates. This Digital Waveform Instrument can be used to stream top quality computerized video signals for generation or acquisition and LCD screens, TV parts, top quality signals (up to 1080 p at 60 Hz), RF baseband gadgets, and HD radio.

The NI PXIe 6544 additionally includes improved timing and synchronization capacities. The onboard available DDS clock gives subhertz resolution up to 100 MHz, helping the user clock information (generation or acquisition) with higher exactness without utilizing an outside clock. Likewise, requiring self-assertive clock frequencies and trading the installed clock to different instruments through the backplane of a PXI Express chassis or through a SMB connector on the front board of the gadget.
