National Instruments PXIe-6547 PXI Digital Waveform Instrument

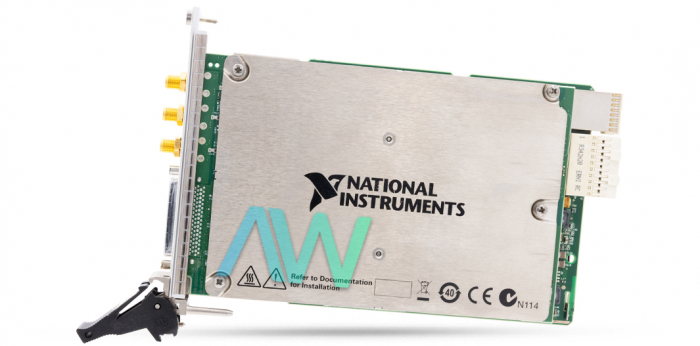

The PXIe-6547 (Part Numbers: 781011-01, 781011-02, 781011-03 and 199552B-02L) PXI Digital Waveform Instrument has 200 MHz bandwidth and 32 Channels. This Digital Waveform Instrument has propelled synchronization capacities to fabricate incorporated blended signal test frameworks and advanced timing highlights per bank. The gadget is equipped for inspecting advanced waveforms up to 200 MHz and building up interfaces with client programmable voltage levels that have a resolution of 100 mV. The NI PXIe-6547 additionally includes propelled synchronization abilities to fabricate incorporated blended signal testing frameworks, equipment examination for bit mistake testing, and digital timing highlights per bank.

The PXIe 6547 module includes improved planning and synchronization capacities. The locally available direct digital synthesis (DDS) clock gives subhertz determination going up to 200 MHz, so the user can clock information (generation or acquisition) with higher accuracy without using an outer clock. The user would now be able to accomplish applications for discretionary clock frequencies with this instrument. The user can share clocks over the PXI backplane or through an SMA connector on the front board of the gadget. The user can also clock their information by bringing in an outside clock through the front board or backplane. With these highlights, the user can synchronize the NI PXIe 6547 module with other analog or advanced instruments. This module is based on the Synchronization and Memory Core (SMC), allowing the user to synchronize various SMC-based gadgets (analog or advanced) by utilizing the NI-TCLK API. The user can accomplish sub-nanosecond resolution while synchronizing numerous gadgets and make synchronized high-channel-count frameworks in a PXI Express chassis.
