National Instruments PXIe-5645R Vector Signal Transceiver

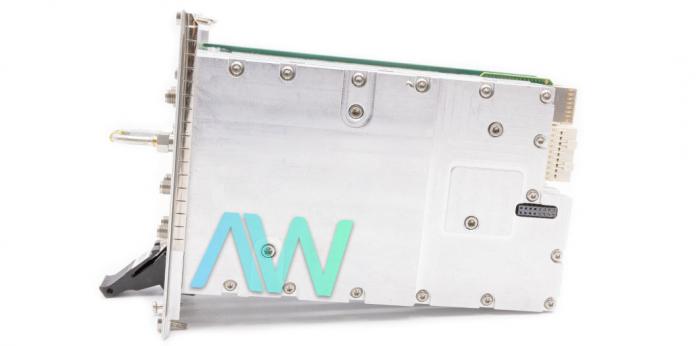

The National Instruments PXIe-5645R (Part Number: 782377-01), also known as PXIe-5645, is a Vector Signal Transceiver. The National Instruments PXIe-5645R Vector Signal Transceiver is manufactured using FPGA technology and can be programmed using National Instruments LabVIEW software. The National Instruments PXIe-5645R has 3 sub-modules. These modules include a digital input/output card, a vector signal generator, and a vector signal analyzer. The frequency range of the PXIe-5645R is 65 MHz to 6 GHz. The NI PXIe-5645R possesses high speed 24 channels of digital input/output (max speed of 250 Mbit/s). The National Instruments PXIe-5645R has two back-plane connectors and is a 4-slot module. Before installing the PXIe-5645R Vector Signal Transceiver, an AC power source must be attached to the chassis.

The NI PXIe-5645R comes with a Xilinx FPGA that can be programmed by the end-user to configure the system and make it compatible for configurations of MIMO (multiple input, multiple output). It is also helpful with parallel testing of one PXI chassis. After receiving the National Instruments PXIe-5645R Vector Signal Transceiver, it is important to make sure the correct software is installed prior to installing hardware.

The NI PXIe-5645R is sensitive to electrostatic discharge because it is a precision RF instrument. Make sure to take the relevant precautions before using the instrument. The National Instruments PXIe-5645R Vector Signal Transceiver fulfills the requirements for EMC (electromagnetic compatibility). EMC compatibility provides safety from dangerous interfaces while operating the PXIe-5645R in electromagnetic environments.
