PXIe-7858R Technical Specifications:
| Manufacturer | National Instruments |
|---|---|
| Model | PXIe-7858R |
| Part Number | 784147-01 |
| Series | R Series |
| Type | PXI Multifunction Reconfigurable I/O Module |
| Repair Evaluation | $150 |
PXIe-7858R
Home PXIe-7858R
| Part Number | PXIe-7858R |
| Manufacturer/Brand | National Instruments |
| Description | PXIe-7858R, 1 MS/s, 512 MB DRAM, R Series Reconfigurable I/O Module |
Speak to a sales representative for pricing & lead time:
Phone:1-919-809-5227
• Quick Quotes: Receive Price & Availability Today!
• Warranty: 1 Year Warranty Covered by Apex Waves
• Calibration: Ask About Our Tiered Calibration Levels
• Option & Modules: Confirm Your Requirements or Versions
• Repair: Cost & Lead Time Available Upon Request for Service
- Description
- Technical Specifications
- FAQ
National Instruments PXIe-7858R PXI R Series Reconfigurable I/O Module
The PXIe-7858R (Part number: 784147-01) is a R Series Reconfigurable I/O Module developed by National Instruments. It is protected from over current and over voltage conditions. This module provides 8 analog inputs which have a data sampling rate of 1 MS/s, with a 16 bit resolution. Each channel has an AIGND pin. These input channels also have an AI- pin and AI+ pin. These pins enable the device to connect differential voltage signals. They also help develop the connection for single-ended voltage signals. The NI PXIe-7858R additionally has 8 analog outputs, which have a data sampling rate of 1 MS/s, with a 16 bit resolution. Each channel consists of an AOGND pin and an AO pin. These pins enable the user to connect the current to the device.
The NI PXIe-7858R offers connections for 48 digital I/O channels. Each connector has adjustable levels from 1.2 V to 3.3 V. These channels can be set as input or output channels. Connector 0 consists of 16 low channels. These channels can perform up to 10 MHz frequency. Connector 1 consists of 32 high-speed channels. These channels can operate up to 80 MHz frequency. The NI PXIe-7858R is structured with an FPGA module. The digital I/O channels are connected with the FPGA by buffers. It helps provide protection against under voltage and over voltage. It also helps protect from overcurrent. The device is equipped with 2 68-pin VHDCI I/O connectors. It has an embedded block RAM of 16,020 kbits with an onboard DRAM of 512 MB.
The device operates using the NI-RIO driver software which is compatible with software packages such as LabVIEW, LabVIEW Real-Time module, or LabVIEW FPGA module. The FPGA feature enhances the performance of the NI PXIe-7858R. It also provides control over I/O signals. Moreover, it brings the flexibility in the system adjustments and timings. The module is used for applications that need control and precise timing, including custom protocol communication and sensor simulation. This module can further be used for high-speed control. The NI PXIe-7858R can perform multi-rate sampling and operate an individual triggering of a channel.
The NI device weighs 0.36 lbs., and measures 7.3 x 6.8 x 1.4 in. in physical dimensions.
| Model | PXIe-7858R |
|---|---|
| Manufacturer | National Instruments |
| Series | R Series |
| Part Number | 784147-01 |
| Type | PXI Multifunction Reconfigurable I/O Module |
| FPGA Type | Kintex-7 325T |
| Analog Inputs | 8 (16 Bits, 1 MS/s) |
| Analog Outputs | 8 (16 Bits, 1 MS/s) |
| Number of Flip-flops | 407,600 |
| Number of DSP48 Slices | 840 |
| Embedded Block RAM | 16,020 kbits |
| Onboard DRAM | 1 Bank; 512 MB |
| Digital I/O | 48 |
| Number of DMA Channels | 16 |
| Timebase | 40, 80, 120, 160, or 200 MHz |

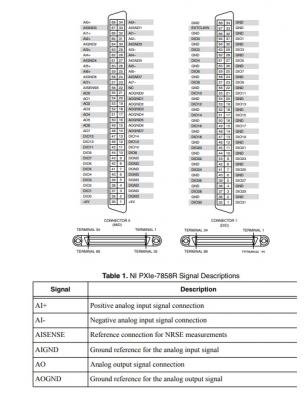

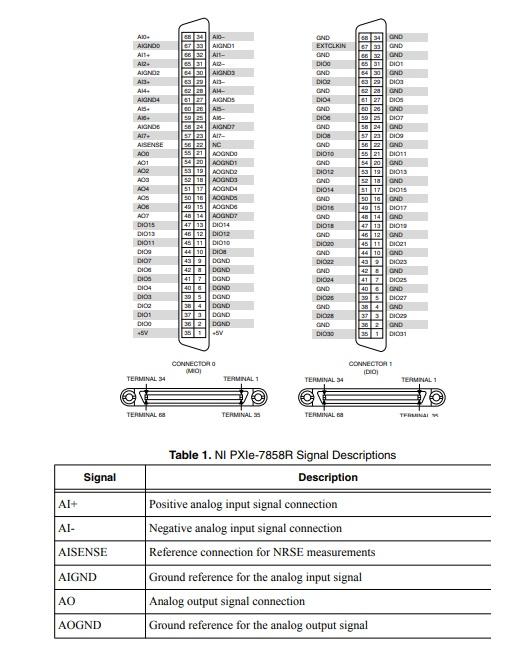

| I/O Connectors | 2 × 68-pin VHDCI |
| Power Requirements | +3.3 VDC, +12 VDC - 03 A, 02 A |
| Dimensions | 7.3 in. × 6.8 in. × 1.4 in. |
| Weight | 0.36 lb. |
| Software Driver | NI-RIO |
| Warranty | Three Year Warranty |
| PXIe-7858R Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments PXIe-7858R Frequently Asked Questions
Question: Which DIO connector should be used with the NI PXIe-7858R?
Answer: For the NI PXIe-7858R, you should be using the SCB-68-HSDIO connector.
Question: What software and drivers must be on the host computer before installing the PXIe-7858R?
Answer: Before installing the PXIe-7858R, you should have the following installed on your computer: LabVIEW 2016 or later, LabVIEW Real-Time Module 2016 or later, LabVIEW FPGA Module 2016 or later, and NI R Series Multifunction RIO Device Drivers 2016 or later.
Question: I’ve installed the PXIe-7858R, but the device is not showing still. What should I do?
Answer: If the PXIe-7858R does not appear after installation, refresh the view in MAX. If it still does not appear, try to reboot from the beginning or refer to the troubleshooting section of the user manual.
