National Instruments PXIe-7867R PXI Multifunction Reconfigurable I/O Module

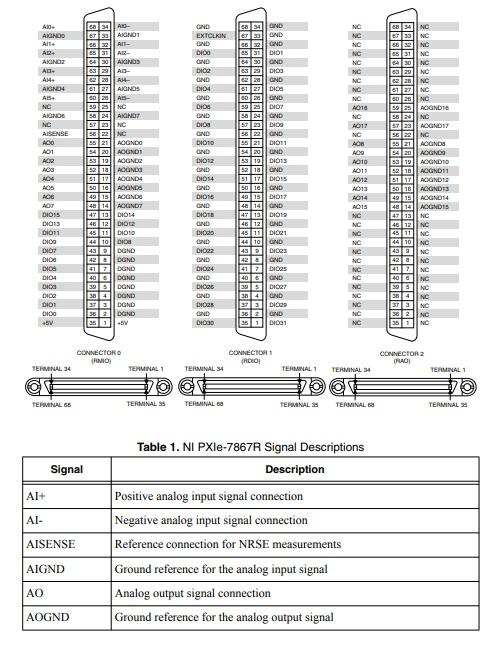

The PXIe-7867R (Part number: 785570-01) is a Multifunction Reconfigurable I/O Module by National Instruments. This R Series RIO Device has an FPGA chipset that can directly control I/O signals. This device can be synchronized with other modules. The NI PXIe-7867R is compatible with PXI modules. This module can transfer data to other PXI Express devices. The PXIe-7867R features SAR ADCs for all channels. These ADCs are used for multi-rate sampling. This module can trigger all channels independently. The NI PXIe-7867R also supports programmable power-on states. This model incorporates three 68-pin VHDCI connectors.

The National Instruments PXIe-7867R Multifunction Reconfigurable I/O Device has six analog input terminals. The ADC resolution of this module is 16 bits. The maximum rate of sampling is 1 MS/s for each channel. The NI PXIe-7867R supports an input voltage range from +1 V to +10V. The analog input terminals have overvoltage protection up to +42V. The small signal bandwidth is 1 MHz. The PXIe-7867R also has 18, 16-bit analog output terminals. The type of DAC in this module is an Enhanced R-2R DAC. The output signal has a range of +10 V. The impedance of the output terminals is 0.5 Ω. The output terminals are also protected up to +15V.

The NI PXIe-7867R device features 48 digital I/O terminals. The digital terminals have compatibility with LVTTL and LVCMOS. The PXIe-7867R has a fixed logic level of 3.3V. The minimum width of the I/O pulse of the NI PXIe-7867R is 6.25 ns. The onboard FPGA of the PXIe-7867R is a Kintex-7 160T FPGA.
