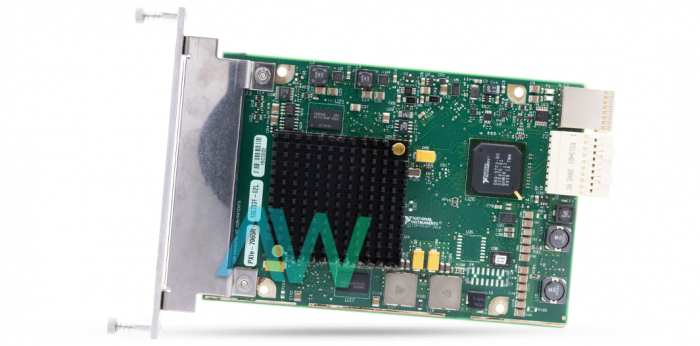

National Instruments PXIe-7965R PXI FPGA Module for FlexRIO

Featured with 32 DMA interrupt channels and 16 DMA channels, the PXIe-7965R (Part Number: 781207-01) is a PXIe based FlexRIO FPGA Module from National Instruments. This module comes featured with a Virtex-5 FPGA (SX95T). The PXIe-7965R has two 256 MB banks of DRAM; each of these two banks can be accessed independently. Through this FPGA Module, you will be able to achieve data transfer rates up to 1 Gb/s in differential mode and 400 Mb/s in single-end mode.

The PXIe-7965R has 66 differential pairs (general-purpose input/output). These general-purpose channels can also be configured as 132 single-ended channels for operating with 132 single-ended signals. The FPGA used in this module has 58,880 LUTs (Flip-Flops), 640 DSP48 Slices, and 8,784 Kbits embedded block RAM. The default time base of the PXIe-7965R operates at a frequency of 40 MHz. This module is designed to support peer-to-peer streaming as well.
